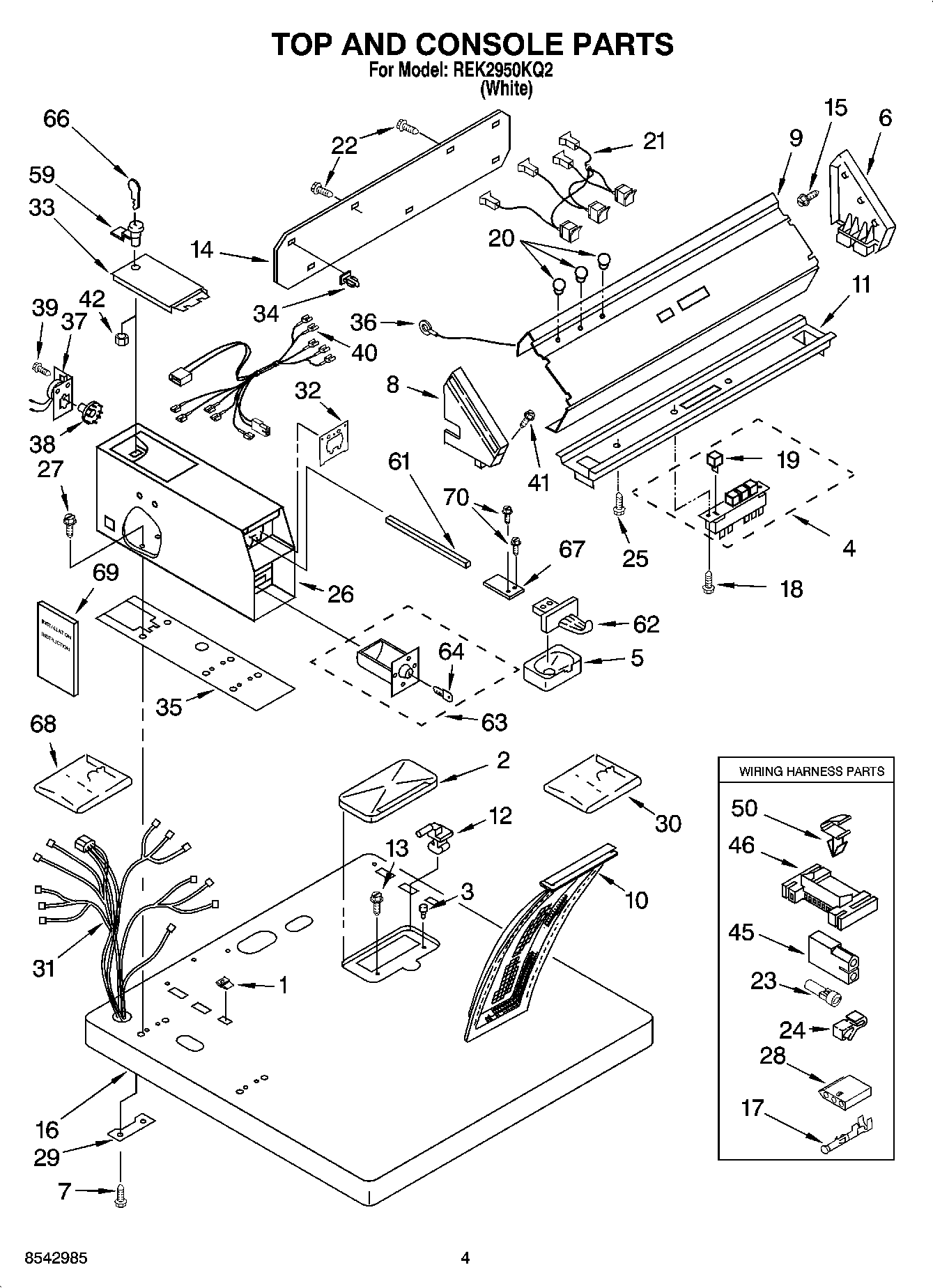

REK2950KQ2 02 – TOP AND CONSOLE PARTS

REK2950KQ2 02 – TOP AND CONSOLE PARTS

Written by

in

REK2950KQ2 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1WP357213 Whirlpool Hinge Stopper
2Cover, Lint Screen
3Bumper, Lint Lid
5WP385421 Whirlpool Coin Operated Laundry Funnel
6Cap, End (R.H.)
7W10841059 Whirlpool Screw
8End Cap (L.H.)
9Panel, Control
10WP349639 Whirlpool Lint Filter
11Bracket, Control
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14Panel, Rear
15WPW10109200 Whirlpool Screw
16Top
17WP94614 Whirlpool Terminal
18WP489128 Whirlpool Refrigerator Screw
19SWITCH-PB
20WP3348109 Whirlpool Light Lens
21Lights, Indicator (240 Volts)
22WP693995 Whirlpool Screw
23Plug
24W10113937 Whirlpool Clamp
25WPW10139210 Whirlpool Screw
26Case, Meter
27W11715721 Whirlpool Screw Assembly
28353424 Whirlpool Connector
293347825 Whirlpool Plate
30WP3406965 Whirlpool Coin Chute
31Harness, Wiring
32279950 Whirlpool Funnel
33W11283272 Whirlpool Washer Dryer Meter Case Access Door
34WP689559 Whirlpool Nut
35WP3954812 Whirlpool Cushion
36Wire, Ground
37279737 Whirlpool Dryer Load Timer
38WP343777 Whirlpool Cam
38WP339855 Whirlpool Cam
38WP339854 Whirlpool Cam
38WP3387974 Whirlpool Cam
38WP339853 Whirlpool Cam
39339805 Whirlpool Screw
403401682 Whirlpool Wire Harness
41WP388326 Whirlpool Screw
42WP90406 Whirlpool Nut
45Receptacle, Latching (2-Way) (Uses Terminal 94614)
463395683 Whirlpool Connector
50WP3394427 Whirlpool Clip
59W11315637 Whirlpool Lock Assembly
61WP8576635 Whirlpool Bolt
62W11126319 Whirlpool Washer Dryer Coin Chute
62Inserts (Not Shown
62WPL 8316265
63W11190039 Whirlpool Coin Box Assembly
64WPL ARI121413A
66WPL ARI121414A
673390424 Whirlpool Extension
68WPL 8316524
69WPL 8316532
70WPL 3400086
70WPL B0592401
70WPL C4889201
