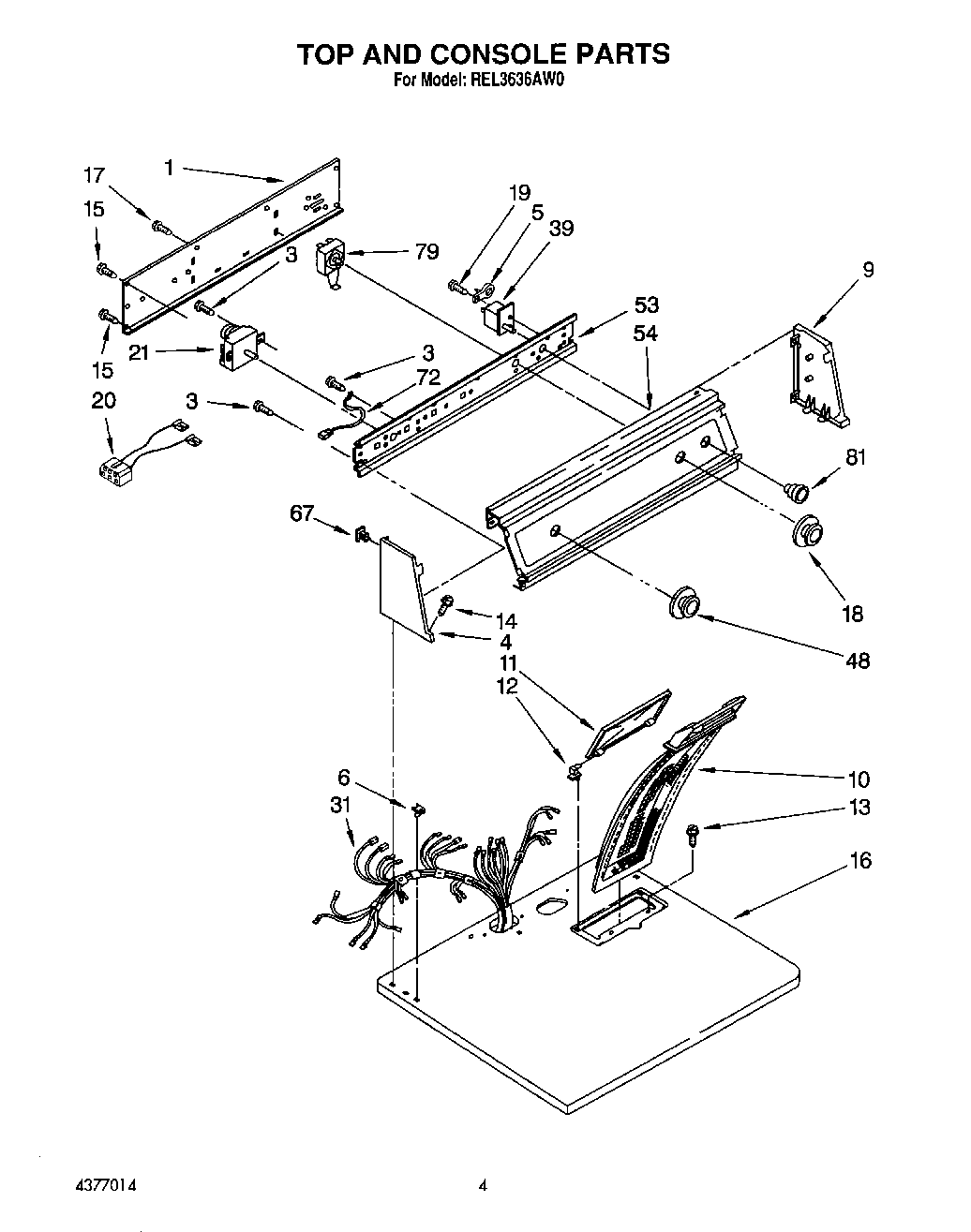

REL3636AW0 03 – SECTION

Products

PositionProduct
350930 Whirlpool White Spray Paint
Almond (Uncut)
List, Service Parts
WP72107 Whirlpool Touchup
Instructions, Installation
799344 Whirlpool Refrigerator Paint
Leveler (Thinner)
72017 Whirlpool Appliance Touch-Up Paint White
Use & Care Guide
350956 Whirlpool Spray Assembly
350938 Whirlpool Spray Gun
1Panel, Rear Console
2SCREW
3WPW10139210 Whirlpool Screw
4Cap, End (L.H.)
5279872 Whirlpool Resistor
6WP357213 Whirlpool Hinge Stopper
9Cap, End (R.H.)
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (White)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
15WP489069 Whirlpool Compactor Screw
16Top (Almond)
16Top (White)
17WP693995 Whirlpool Screw
18Knob, Temperature
19WP488729 Whirlpool Refrigerator Door Screw
208283286 Whirlpool Wire Harness
21WP3976568 Whirlpool Timer
31Harness, Wiring
39(Alt.)
39Switch, Push-To-Start
48Timer Knob Assembly
53Bracket, Control
54Panel, Control
67WP689559 Whirlpool Nut
72Wire, Ground
79Switch, Temperature
81Knob, Push-To-Start
