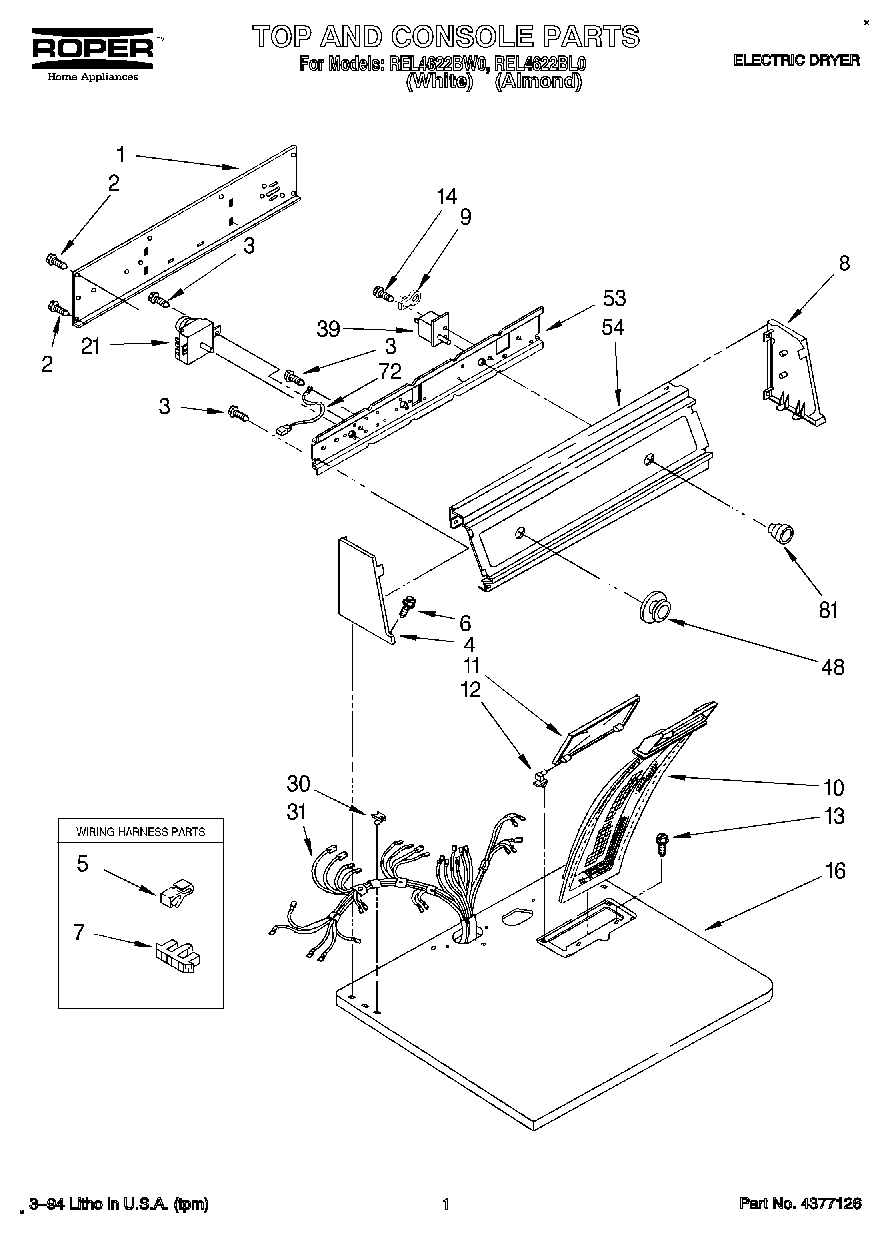

REL4622BW0 01 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Label, Wiring Diagram
	Almond (Uncut)
	Leveler (Thinner)
	WP72107 Whirlpool Touchup
	Guide, Use & Care
	799344 Whirlpool Refrigerator Paint
	Instructions, Installation
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
1	Panel, Rear Console
2	WP489069 Whirlpool Compactor Screw
3	WPW10139210 Whirlpool Screw
4	Cap, End (L.H.) (Black)
5	Clip, Retainer
6	WP388326 Whirlpool Screw
7	Connector, Timer
8	Cap, End (R.H.) (Black)
9	279872 Whirlpool Resistor
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (White)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP488729 Whirlpool Refrigerator Door Screw
16	Top (White)
16	Top (Almond)
21	WP3976568 Whirlpool Timer
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
39	Switch, Push-To-Start
48	Timer Knob Assembly
53	Bracket, Control
54	Panel, Control
72	Wire, Ground
81	Knob, Push-To-Start
