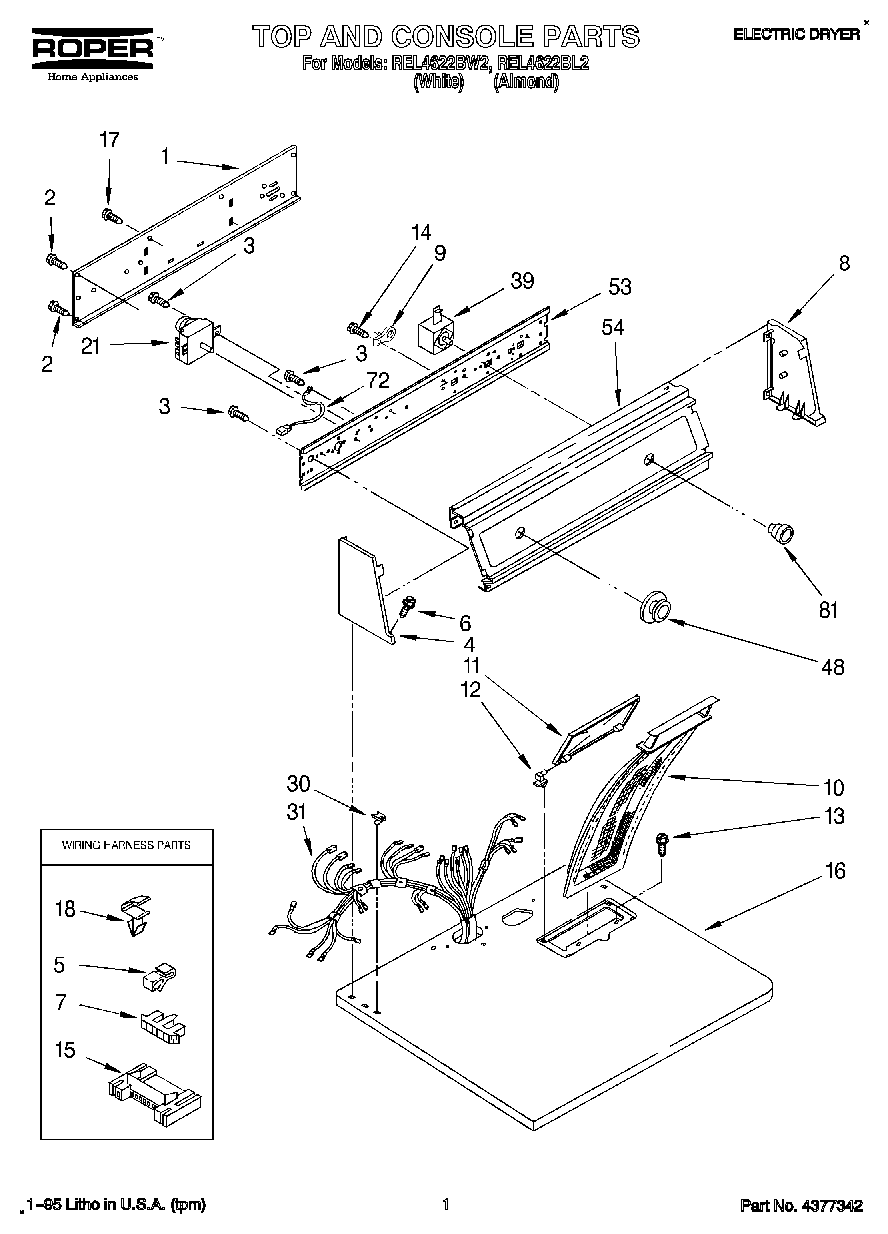

REL4622BW2 01 – SECTION

REL4622BW2 01 – SECTION

Written by

in

REL4622BW2 01 – SECTION

Products

PositionProduct
350930 Whirlpool White Spray Paint
Instructions, Installation
Almond (Uncut)
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
Guide, Use & Care
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
Label, Wiring Diagram
350938 Whirlpool Spray Gun
1Panel, Rear Console
2WP489069 Whirlpool Compactor Screw
3WPW10139210 Whirlpool Screw
4Cap, End (L.H.) (Black)
5Clip, Retainer
6WP388326 Whirlpool Screw
7Connector, Timer
8Cap, End (R.H.) (Black)
9279872 Whirlpool Resistor
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (White)
11Cover, Lint Screen (Almond)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP488729 Whirlpool Refrigerator Door Screw
153395683 Whirlpool Connector
16Top (White)
16Top (Almond)
17WP693995 Whirlpool Screw
18WP3394427 Whirlpool Clip
21WP3976568 Whirlpool Timer
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
39WP3395382 Whirlpool Push To Start Switch
48Timer Knob Assembly
53Bracket, Control
54Panel, Control
72Wire, Ground
81Knob, Push-To-Start
