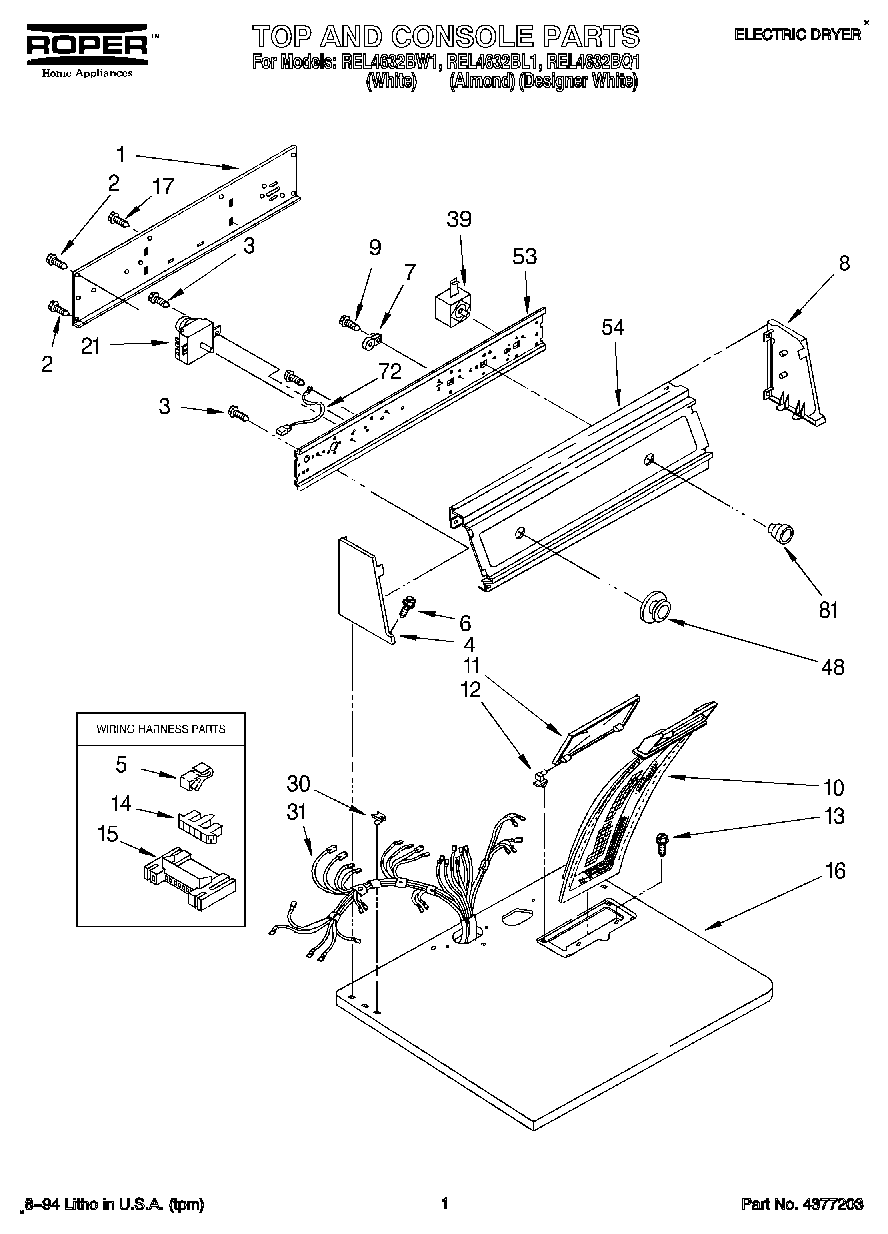

REL4632BL1 01 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Instructions, Installation
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	Label, Wiring Diagram
	72017 Whirlpool Appliance Touch-Up Paint White
	Guide, Use & Care
	350938 Whirlpool Spray Gun
	350956 Whirlpool Spray Assembly
1	Panel, Rear Console
2	WP489069 Whirlpool Compactor Screw
3	WPW10139210 Whirlpool Screw
4	Cap, End (L.H.)
4	FOR MODEL REL4632BQ3
5	Clip, Retainer
6	WP388326 Whirlpool Screw
7	279872 Whirlpool Resistor
8	FOR MODEL REL4632BQ3
8	Cap, End (R.H.)
9	WP488729 Whirlpool Refrigerator Door Screw
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (White)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	Connector, Timer
15	3395683 Whirlpool Connector
16	Top (White)
16	Top (Almond)
17	WP693995 Whirlpool Screw
21	Timer, 60 Hz.
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
39	WP3395382 Whirlpool Push To Start Switch
48	Timer Knob Assembly
48	FOR MODEL REL4632BQ3
53	Bracket, Control
54	FOR MODEL REL4632BQ3
54	Panel, Control
72	Wire, Ground
81	Knob, Push-To-Start
81	FOR MODEL REL4632BQ3
