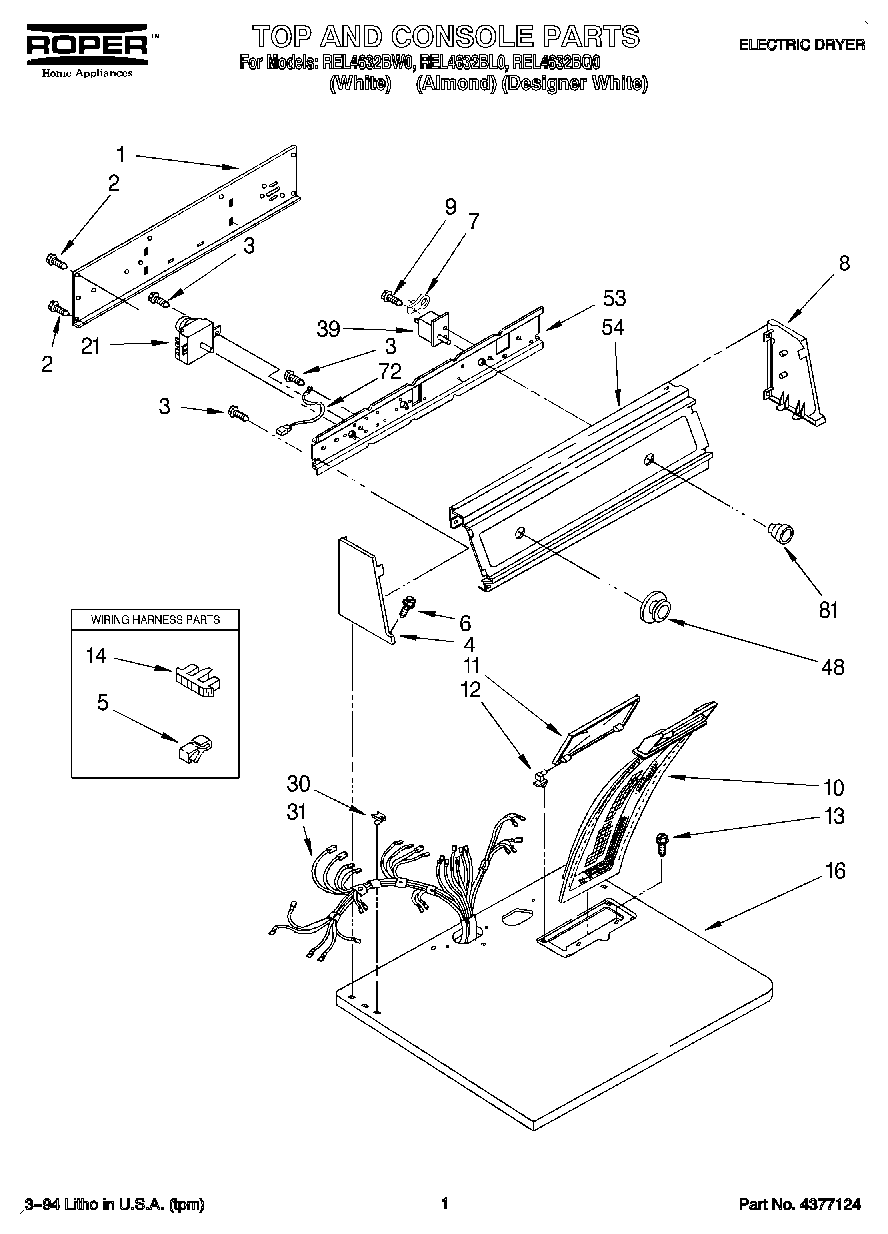

REL4632BQ0 01 – SECTION

REL4632BQ0 01 – SECTION

Written by

in

REL4632BQ0 01 – SECTION

Products

PositionProduct
350930 Whirlpool White Spray Paint
Guide, Use & Care
Instructions, Installation
Leveler (Thinner)
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
Almond (Uncut)
350938 Whirlpool Spray Gun
Label, Wiring Diagram
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
1Panel, Rear Console
2WP489069 Whirlpool Compactor Screw
3WPW10139210 Whirlpool Screw
4Cap, End (L.H.)
4FOR MODEL REL4632BQ3
5Clip, Retainer
6WP388326 Whirlpool Screw
7279872 Whirlpool Resistor
8Cap, End (R.H.)
8FOR MODEL REL4632BQ3
9WP488729 Whirlpool Refrigerator Door Screw
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (White)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14Connector, Timer
16Top (White)
16Top (Almond)
21Timer, 60 Hz.
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
39Switch, Push-To-Start
48FOR MODEL REL4632BQ3
48Timer Knob Assembly
53Bracket, Control
54Panel, Control
54FOR MODEL REL4632BQ3
72Wire, Ground
81Knob, Push-To-Start
