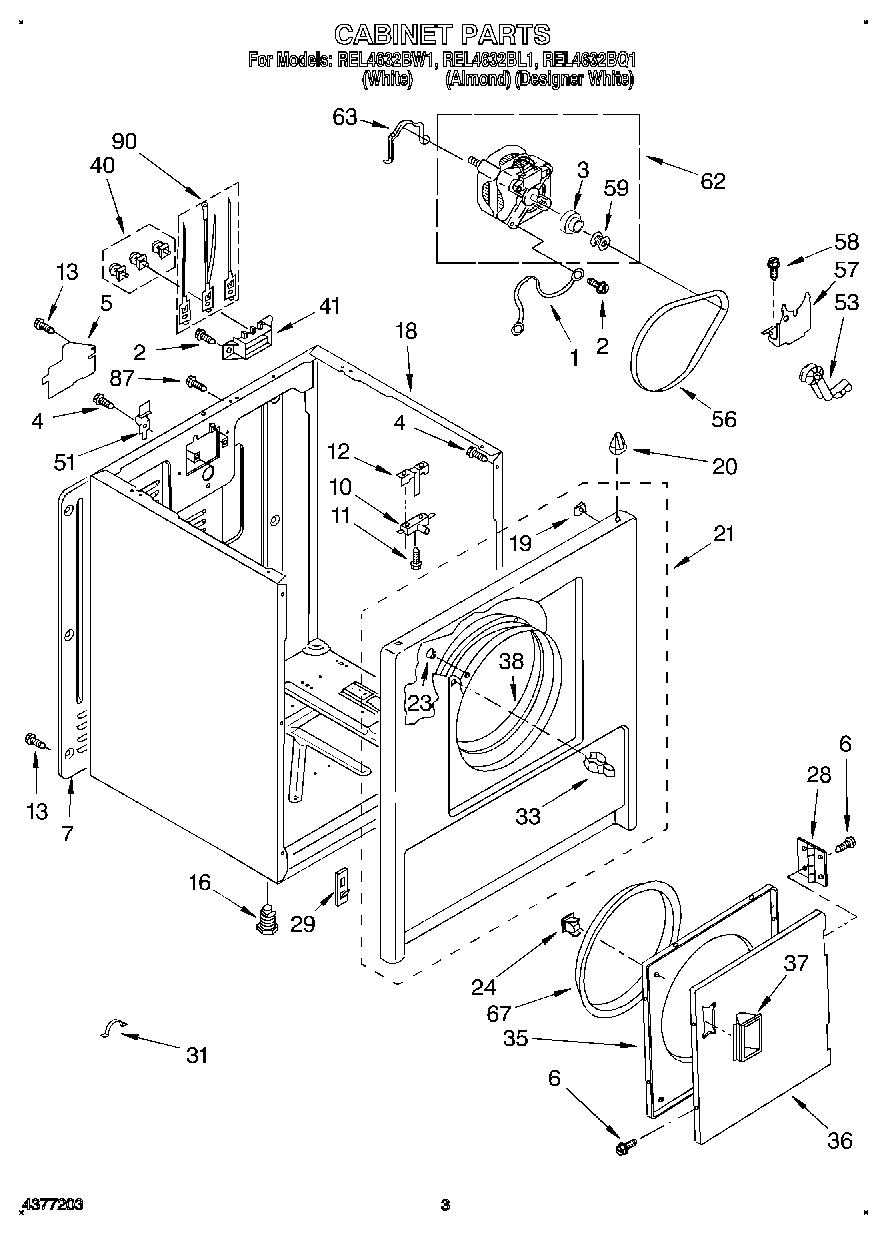

REL4632BW1 02 – SECTION

Products

Position	Product
1	Wire, Ground (Motor)
2	WP308685 Whirlpool Microwave Screw
3	WP3393657 Whirlpool Belt Retainer
4	SCREW
5	W11539855 Whirlpool Refrigerator Pump
6	WP694091 Whirlpool Screw
7	280040 Whirlpool Rear Panel
10	W10820036 Whirlpool Door Switch Kit
11	WP98129 Whirlpool Screw
12	WP691581 Whirlpool Actuator
13	WP489069 Whirlpool Compactor Screw
16	49621 Whirlpool Leveling Feet
18	Cabinet (Includes Illus. Nos.5,7,16,41, And 57.) (Almond)
18	Cabinet (White (Includes Illus. Nos. 5, 7, 16, 41, and 57))
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	Front Panel (White)
21	Front Panel (Almond)
23	279220 Whirlpool Clip
24	WP3389441 Whirlpool Door Catch
28	WP348023 Whirlpool Hinge
29	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
31	8528351 Whirlpool Clip
33	279570 Whirlpool Dryer Door Latch Kit
35	280077 Whirlpool Door
36	WP348205 Whirlpool Door
36	Door, Front (Almond)
37	Handle, Door (Almond)
37	WP686711 Whirlpool Door Handle
38	279264 Whirlpool Bearing and Seal Kit
40	279393 Whirlpool Terminal Block Screw and Nut Kit
41	279320 Whirlpool Dryer Rear Terminal Block Kit
51	WP8066217 Whirlpool Hinge
53	WP691366 Whirlpool Dryer Idler Pulley Assembly
56	341241 Whirlpool Dryer Drum Belt
57	WP348780 Whirlpool Base
58	3400500 Whirlpool Screw
59	WP8066184 Whirlpool Dryer Motor Pulley
62	279827 Whirlpool Dryer Drive Motor
63	WP660658 Whirlpool Clamp
67	W11613302 Whirlpool Door Seal
87	W10850756 Whirlpool Screw
90	279318 Whirlpool Terminal
