REL4636BL1 02 – SECTION

REL4636BL1 02 – SECTION

Written by

in

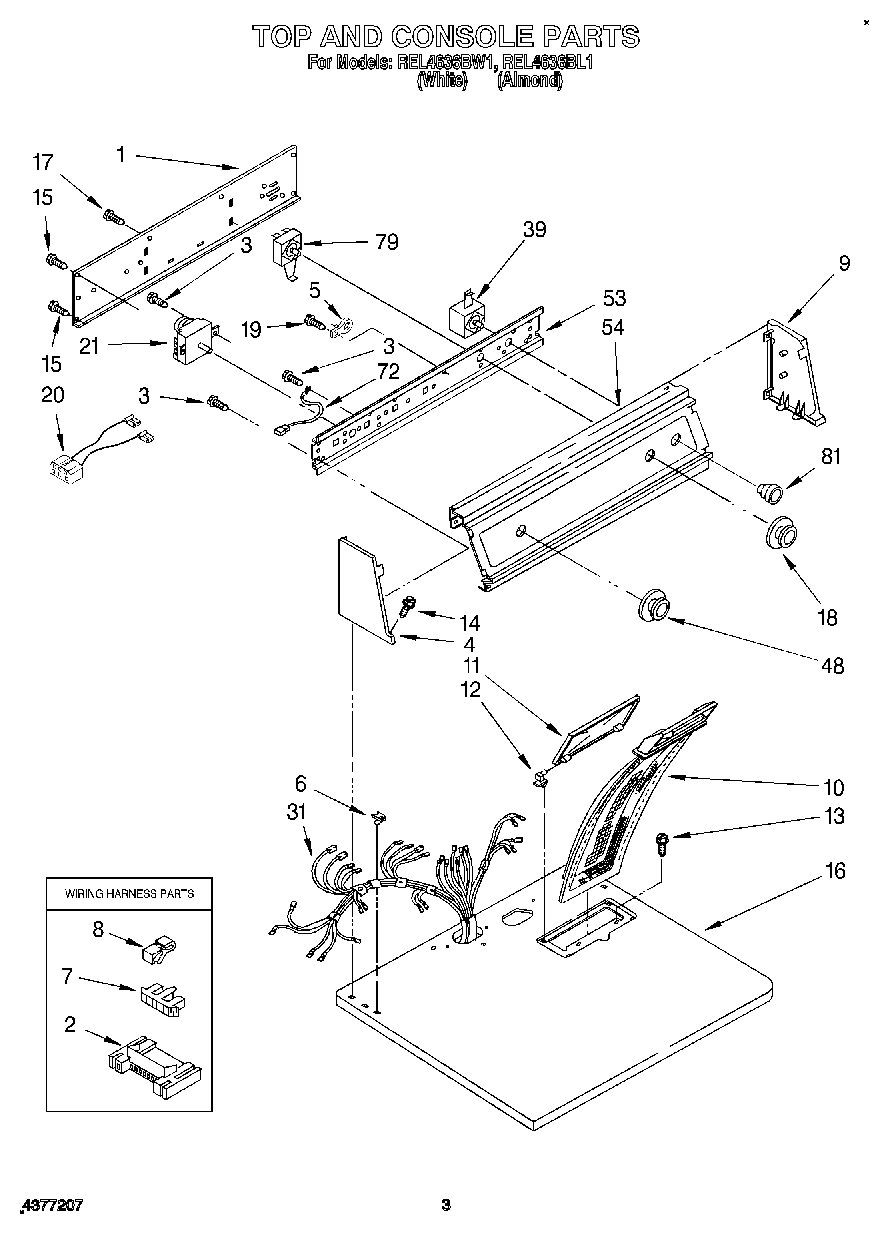

REL4636BL1 02 – SECTION

Products

PositionProduct
350930 Whirlpool White Spray Paint
Guide, Use & Care
Instructions, Installation
Label, Wiring Diagram
Almond (Uncut)
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350938 Whirlpool Spray Gun
350956 Whirlpool Spray Assembly
1Panel, Rear Console
23395683 Whirlpool Connector
3WPW10139210 Whirlpool Screw
4Cap, End (L.H.)
5279872 Whirlpool Resistor
6WP357213 Whirlpool Hinge Stopper
7Connector, Timer
8Clip, Retainer
9Cap, End (R.H.)
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (White)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
15WP489069 Whirlpool Compactor Screw
16Top (White)
16Top (Almond)
17WP693995 Whirlpool Screw
18Knob, Temperature
19WP488729 Whirlpool Refrigerator Door Screw
208283286 Whirlpool Wire Harness
21WP3976568 Whirlpool Timer
31Harness, Wiring
39WP3395382 Whirlpool Push To Start Switch
48Timer Knob Assembly
53Bracket, Control
54Panel, Control
72Wire, Ground
79Switch, Temperature
81Knob, Push-To-Start
