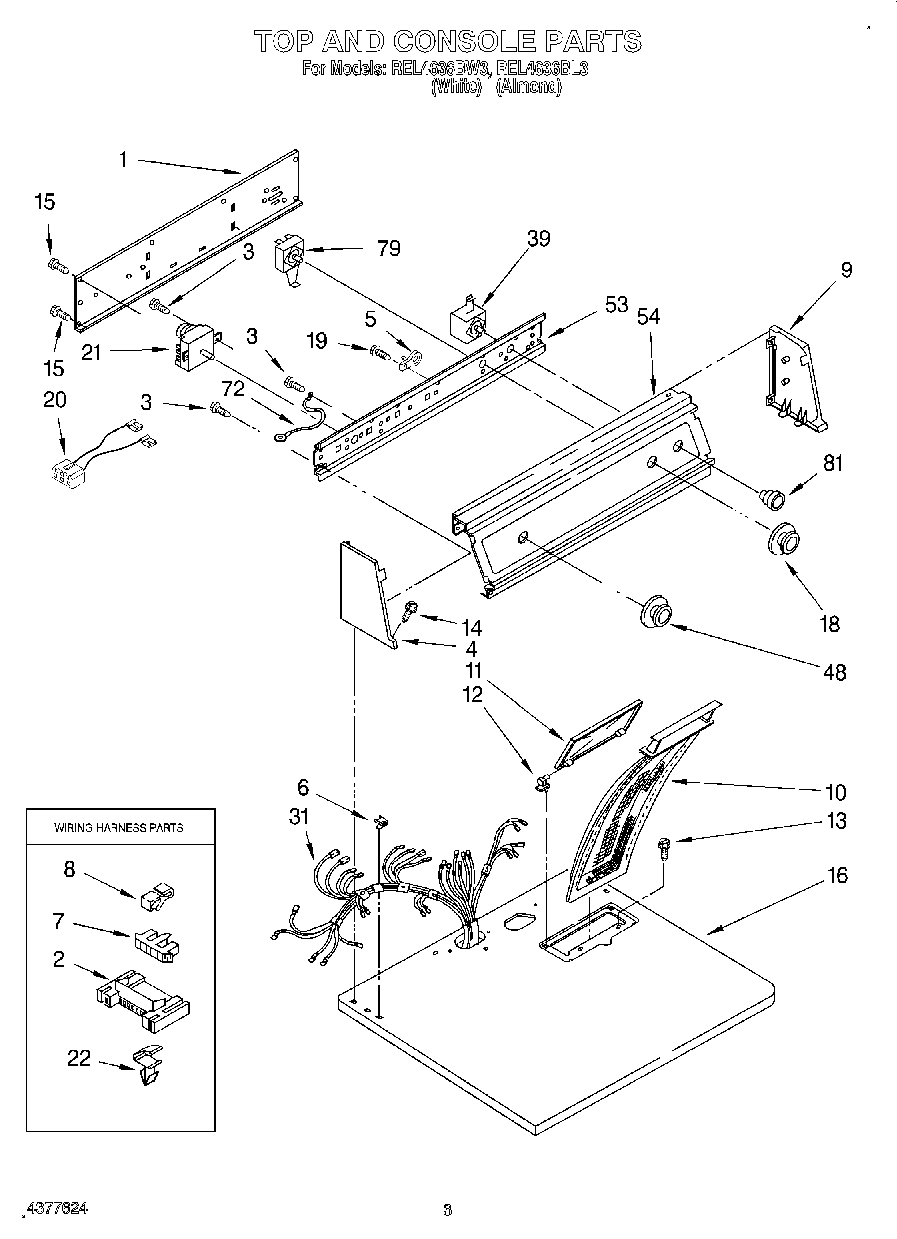

REL4636BL3 02 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Guide, Use & Care
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	Label, Wiring Diagram
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	Instructions, Installation
	350938 Whirlpool Spray Gun
1	Panel, Rear Console
2	3395683 Whirlpool Connector
3	WPW10139210 Whirlpool Screw
4	Cap, End (L.H.)
5	279872 Whirlpool Resistor
6	WP357213 Whirlpool Hinge Stopper
7	Connector, Timer
8	Clip, Retainer
9	Cap, End (R.H.)
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Almond)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP388326 Whirlpool Screw
15	WP693995 Whirlpool Screw
16	Top (White)
16	Top (Almond)
18	Knob, Temperature
19	WP488729 Whirlpool Refrigerator Door Screw
20	8283286 Whirlpool Wire Harness
21	WP3976568 Whirlpool Timer
22	WP3394427 Whirlpool Clip
31	Harness, Wiring
39	WP3395382 Whirlpool Push To Start Switch
48	Timer Knob Assembly
53	Bracket, Control
54	Panel, Control
72	Wire, Ground
79	3399638 Whirlpool Switch
81	Knob, Push-To-Start
