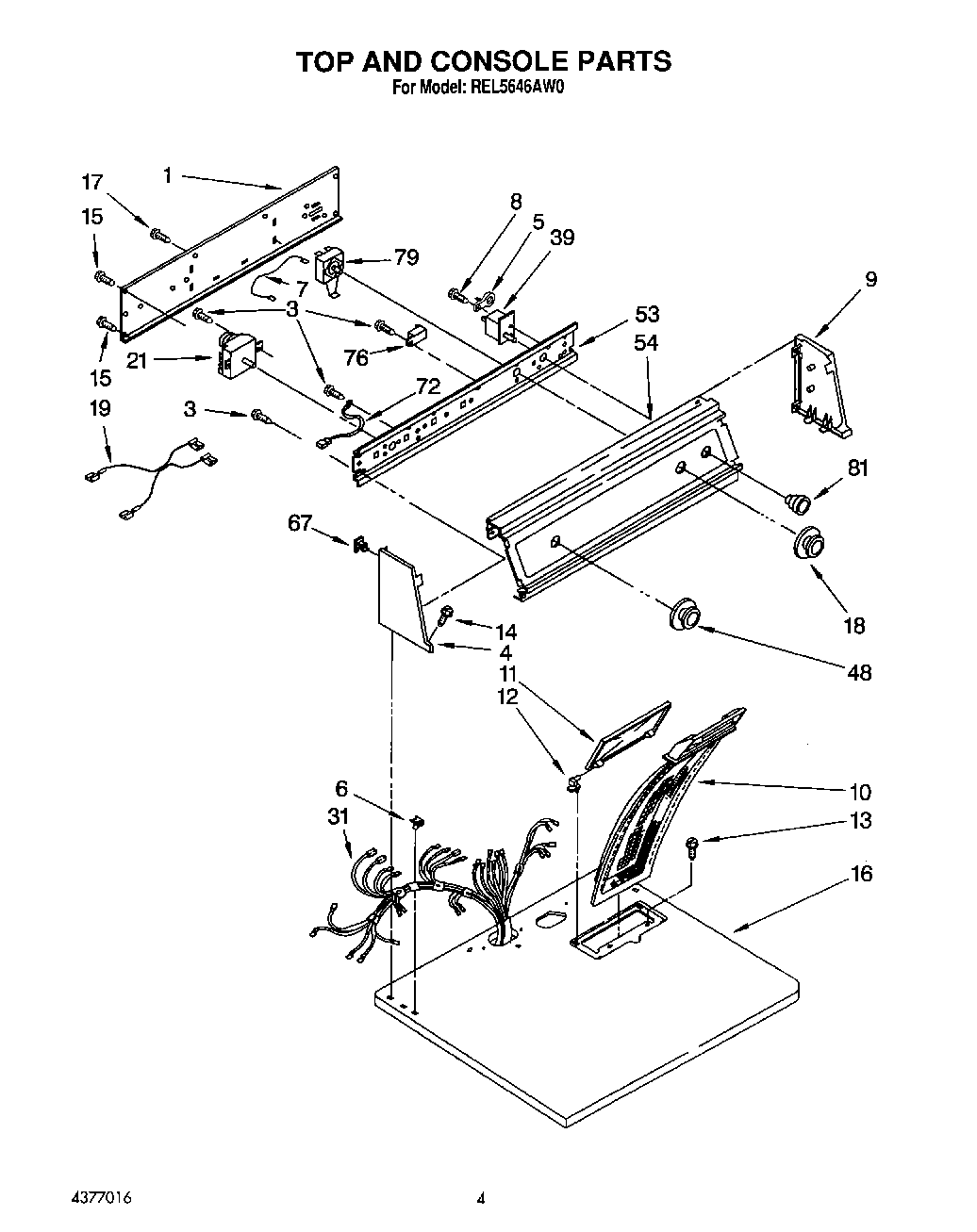

REL5646AW0 03 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Instructions, Installation
	Use & Care Guide
	Almond (Uncut)
	Leveler (Thinner)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
	List, Service Parts
1	Panel, Rear Console
2	SCREW
3	WPW10139210 Whirlpool Screw
4	Cap, End (L.H.)
5	279872 Whirlpool Resistor
6	WP357213 Whirlpool Hinge Stopper
7	Wire, Jumper (Blue)
7	Wire, Jumper (Violet)
8	WP488729 Whirlpool Refrigerator Door Screw
9	Cap, End (R.H.)
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Almond)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP388326 Whirlpool Screw
15	WP489069 Whirlpool Compactor Screw
16	Top (White)
16	Top (Almond)
17	WP693995 Whirlpool Screw
18	Knob, Temperature
19	Wire Jumper Assembly
21	WP3396047 Whirlpool Timer
31	Harness, Wiring
39	Relay, Push-To-Start
48	Timer Knob Assembly
53	Bracket, Control
54	Panel, Control
67	WP689559 Whirlpool Nut
72	Wire, Ground
76	WP694419 Whirlpool Buzzer Adjuster
79	Switch, Rotary (Temperature Selector)
81	Knob, Push-To-Start
