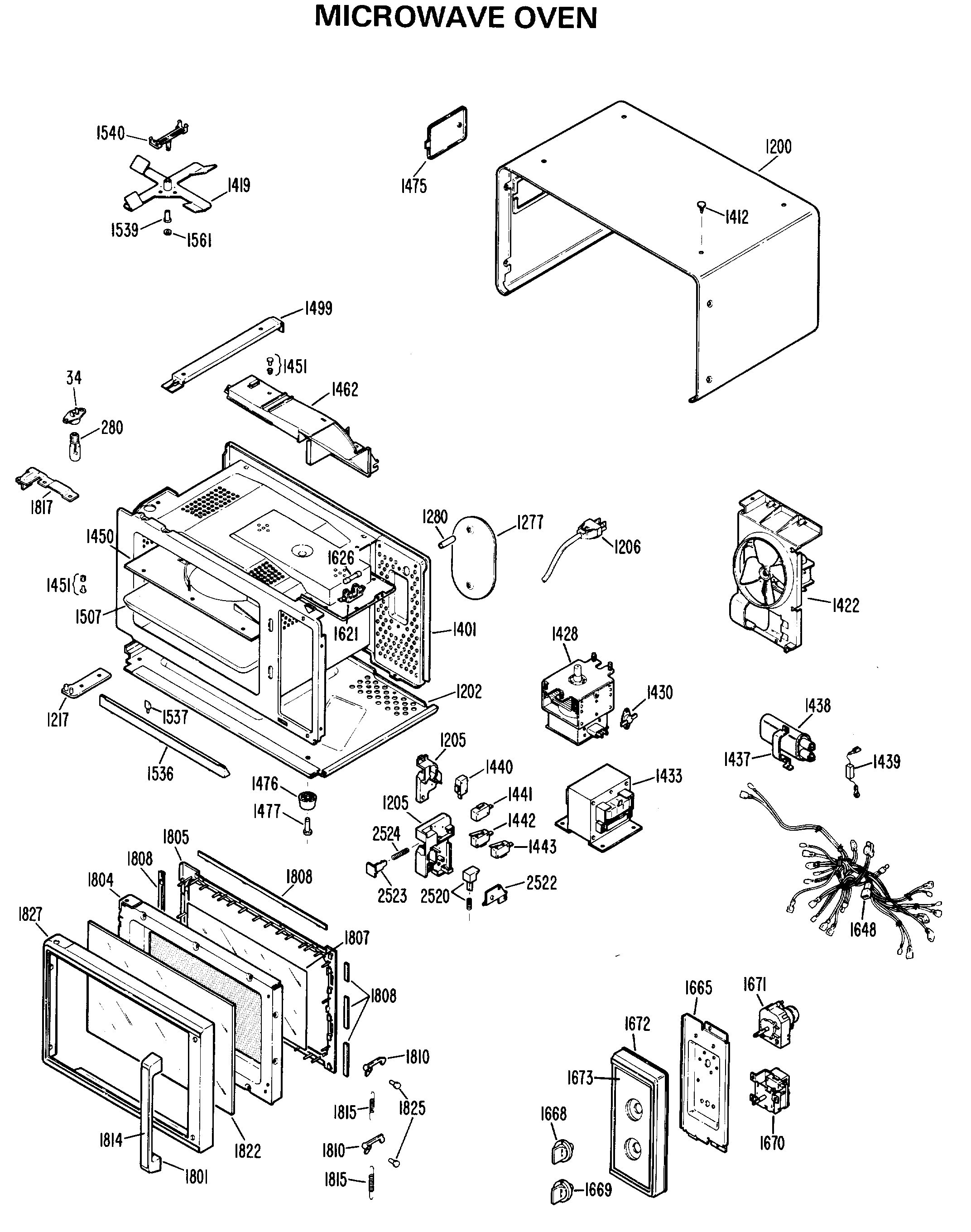

REM2F02 MICROWAVE OVEN

Products

Position	Product
34	GEN WB08X0256
280	GEN WB02X4611
1200	GEN WB56X1773
1202	BASE PLATE
1205	LATCH BODY-UPPER
1205	LATCH BODY-LOWER
1206	CORD-POWER SUPPLY
1217	HINGE-LOWER
1227	GEN WB02X4683
1280	GEN WB02X4682
1401	OVEN ASSEMBLY
1412	PLUG BUTTON
1419	BLADE-STIRRER
1422	FAN MOTOR ASM
1428	GEN WB27X0348
1430	GEN WB27X0231
1433	TRANSFORMER-HV
1437	GEN WB02X4677
1438	GEN WB27X0331
1439	WB27X1160 GE Microwave High Voltage Diode
1440	WB24X829 GE Oven Microwave Secondary Micro Switch
1441	SWITCH-MONITOR
1443	SWITCH-SECONDARY/DOOR
1450	COVER-STIRRER
1451	GEN WB02X7566
1462	COVER-AIR
1475	COVER,OVEN LAMP
1476	GEN WB02X7374
1477	PIN-FOOT
1499	BRACKET-LIGHT SHIELD
1499	GEN WB02X4693
1507	TRAY-GLASS
1536	STOP-COOK TRAY
1537	CLIP-COOK TRAY STOP
1539	GEN WB02X4688
1540	GEN WB02X4882
1561	GEN WB01X0651
1621	FUSE HOLDER
1626	WB27X7 GE Oven Fuse
1648	GEN WB18X0291
1665	GEN WB02X4684
1668	KNOB-TIMER
1669	KNOB-SELECTOR SWITCH
1669	SPRING-KNOB
1670	GEN WB19X0225
1671	GEN WB19X0228
1672	GEN WB04X0114
1673	GEN WB02X4704
1801	GEN WB15X0227
1804	GEN WB55X0593
1805	FRAME-DOOR-INNER
1807	GEN WB02X4698
1808	RUBBER-FERRITE-TOP/BOT
1808	RUBBER-FERRITE-RH TOP
1808	RUBBER-FERRITE-RH CENTER
1808	RUBBER-FERRITE-RH BOTTOM
1810	KEY-UPPER
1810	KEY-LOWER
1814	GEN WB15X0226
1815	SPRING-KEY-LOWER
1815	SPRING-KEY-UPPER
1817	GEN WB10X0232
1822	GEN WB55X0596
1825	PIN-HANDLE KEY
1827	GEN WB55X0595
2520	SPRING-SLIDER
2521	SLIDE-LATCH
2522	COVER-SLIDE
2523	GEN WB02X4681
2524	SPRING-SLIDER
32767	GEN WB02X4726
32767	TOUCH UP-CAVITY (SPRAY)
32767	INSTALLATION INSTRUCTION
32767	GEN 39-4568
32767	GEN 39-4572
