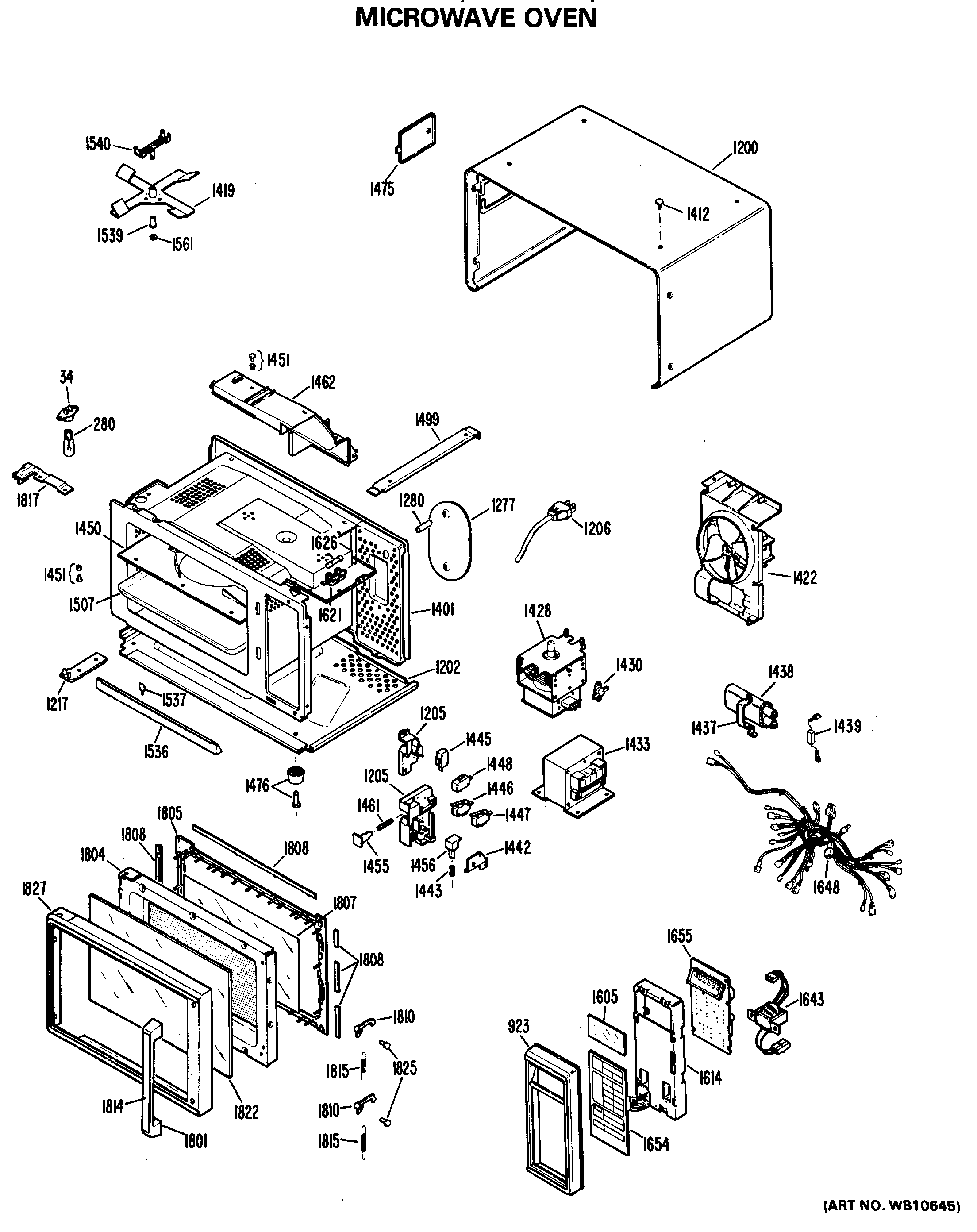

REM4F01 MICROWAVE OVEN

Products

Position	Product
34	GEN WB08X0256
280	GEN WB02X4611
923	TRIM-CONTROL PANEL
1200	GEN WB56X1773
1202	BASE PLATE
1205	LATCH BODY-UPPER
1205	LATCH BODY-LOWER
1206	CORD-POWER SUPPLY
1217	HINGE-LOWER
1277	GEN WB02X4683
1280	GEN WB02X4682
1401	OVEN ASSEMBLY
1412	PLUG BUTTON
1419	BLADE-STIRRER
1422	FAN MOTOR ASM
1428	GEN WB27X0348
1430	GEN WB27X0231
1433	TRANSFORMER-HV
1437	GEN WB02X4677
1438	GEN WB27X0331
1439	WB27X1160 GE Microwave High Voltage Diode
1442	COVER-SLIDE
1443	SPRING-SLIDER
1446	SWITCH-SECONDARY/DOOR
1447	WB24X829 GE Oven Microwave Secondary Micro Switch
1448	SWITCH-MONITOR
1450	COVER-STIRRER
1451	GEN WB02X7566
1455	GEN WB02X4681
1456	SLIDE-LATCH
1461	SPRING-SLIDER
1462	COVER-AIR
1475	COVER,OVEN LAMP
1476	PIN-FOOT
1476	GEN WB02X7374
1499	BRACKET-LIGHT SHIELD
1499	GEN WB02X4693
1507	TRAY-GLASS
1536	STOP-COOK TRAY
1537	CLIP-COOK TRAY STOP
1539	GEN WB02X4688
1540	GEN WB02X4882
1561	GEN WB01X0651
1605	GEN WB36X0718
1614	GEN WB02X4701
1621	FUSE HOLDER
1626	WB27X7 GE Oven Fuse
1643	GEN WB27X0353
1648	GEN WB18X0249
1654	GEN WB27X0354
1655	SMART BOARD AND DISPLAY
1801	GEN WB15X0227
1804	GEN WB55X0593
1805	FRAME-DOOR-INNER
1807	GEN WB02X4698
1808	RUBBER-FERRITE-LH SIDE
1808	RUBBER-FERRITE-RH CENTER
1808	RUBBER-FERRITE-RH TOP
1808	RUBBER-FERRITE-RH BOTTOM
1808	RUBBER-FERRITE-TOP/BOT
1810	KEY-UPPER
1810	GEN WB02X4705
1814	GEN WB15X0228
1815	SPRING-KEY-LOWER
1815	SPRING-KEY-UPPER
1817	GEN WB10X0232
1822	GEN WB55X0596
1825	PIN-HANDLE KEY
1827	GEN WB55X0595
32767	GEN 39-4572
32767	GEN WB02X4726
32767	INSTALLATION INSTRUCTION
32767	GEN 39-4569
