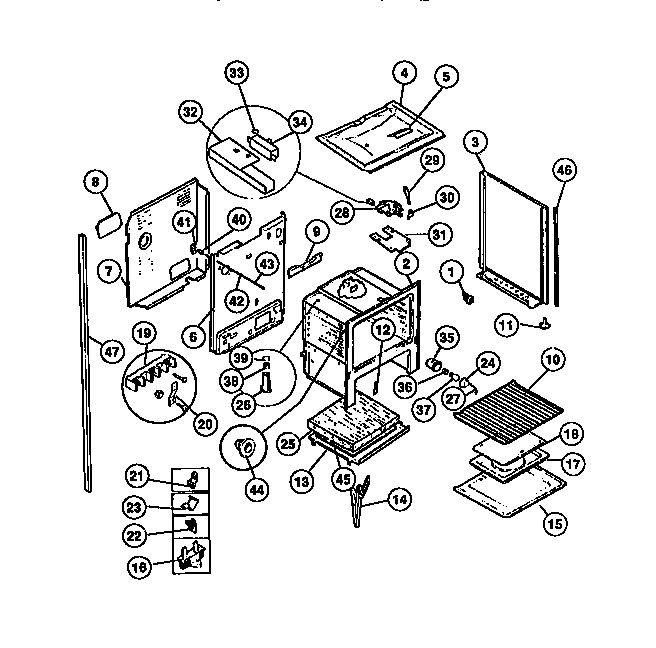

REM638BDL0 08 – BODY

Products

Position	Product
1	SOCKET-OVEN LIGHT
2	WIRING HARNESSES ARE NOT AVAILABLE FOR THIS MODEL
3C	PNL-BDYSDE-RH-ALMD
3A	PNL-BDYSDE-LH-ALMD
4	WCI 08067749
5	WCI 08067757
6	WCI 08067728
7	WCI 08067789
8	WCI 08067756
9	WCI 08067755
10	316067902 Frigidaire Oven Rack
11	WCI 08010569
12	CVR-HNG CUTOUT (2)
13	WCI 08067788
14	WCI 316007002
15	WCI 08067745
16	WCI 08067764
17	BROILER PAN
18	WCI 08016608
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	WCI 08011708
21	WCI 08067754
22	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
23	WCI 08067753
24	WCI 08067765
25	WCI 08067771
26	WCI 08067811
27A	INSULATION-WRAP (NON-ILLUSTRATED)
27	WIRE-GLASS RETAINR
27E	WCI 08067783
27B	INSULATION-BACK (NON-ILLUSTRATED)
27D	WCI 08067836
28	WCI 3051258
29	WCI 08067777
30	WCI 08013189
30A	WCI 08013188
31	SHIELD-BI MTL LATCH
32	WCI 080677780
33	FSTNR-PUSH ON
34	WCI 008067781
35	WCI 8067809
36	316116400 Frigidaire Oven Light Socket
37	316538904 Frigidaire Oven Lamp Light
38	WCI 08067810
39	WCI 08010606
40	WCI 08010563
41	WCI 08067748
42	ROD, LIGHT
43	WCI 08067758
44	WCI 08067750
45	WCI 08067790
45B	INSULATION, TOUCH (NON-ILLUSTRATED)
46	TRIM-VERTICAL BODYSIDE (2)
47A	WCI 08067744
47B	3131903 Frigidaire Door/Drawer Bumper
47	WCI 08067743
