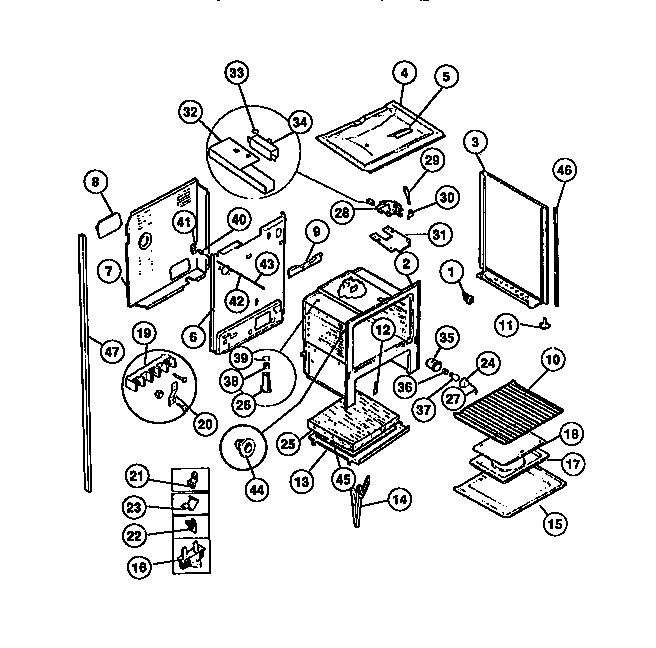

| 1 | SOCKET-OVEN LIGHT |
| 2 | WIRING HARNESSES ARE NOT AVAILABLE FOR THIS MODEL |
| 3G | PNL B/S-LH (ALMOND) |
| 3E | PNL B/S-RH (ALMOND) |
| 4 | WCI 08067749 |
| 5 | WCI 08067757 |
| 6 | WCI 08067728 |
| 7 | WCI 08067789 |
| 8 | WCI 08067756 |
| 9 | WCI 08067755 |
| 10 | 316067902 Frigidaire Oven Rack |
| 11 | WCI 08010569 |
| 12 | CVR-HNG CUTOUT (2) |
| 13A | SHIELD, OVEN BOTTOM |
| 14 | WCI 316007002 |
| 15 | WCI 08067745 |
| 16 | WCI 08067764 |
| 17 | BROILER PAN |
| 18 | WCI 08016608 |
| 19 | 5304409888 Frigidaire Oven Terminal Block with Hardware |
| 20 | WCI 08011708 |
| 21 | WCI 08067754 |
| 22 | 3051162 Frigidaire Oven Range Front Broiler Drawer Glide |
| 23 | WCI 08067753 |
| 24 | WCI 08067765 |
| 25A | 316403803 Frigidaire Insulation |
| 26 | WCI 08067811 |
| 27B | INSULATION-BACK (NON-ILLUSTRATED) |
| 27D | WCI 08067836 |
| 27E | WCI 08067783 |
| 27 | WIRE-GLASS RETAINR |
| 28 | WCI 3051258 |
| 29 | WCI 08067777 |
| 30 | WCI 08013189 |
| 30A | WCI 08013188 |
| 31 | SHIELD-BI MTL LATCH |
| 32 | WCI 080677780 |
| 33 | FSTNR-PUSH ON |
| 34 | WCI 008067781 |
| 35 | WCI 8067809 |
| 36 | 316116400 Frigidaire Oven Light Socket |
| 37 | 316538904 Frigidaire Oven Lamp Light |
| 38 | WCI 08067810 |
| 39 | WCI 08010606 |
| 40 | WCI 08010563 |
| 41 | WCI 08067748 |
| 42 | ROD, LIGHT |
| 43 | WCI 08067758 |
| 44 | WCI 08067750 |
| 45A | WCI 3200848 |
| 45B | INSULATION, TOUCH (NON-ILLUSTRATED) |
| 46 | TRIM-VERTICAL BODYSIDE (2) |
| 47A | WCI 08067744 |
| 47E | INSULATION, OVEN WRAPPER |
| 47B | 3131903 Frigidaire Door/Drawer Bumper |
| 47C | SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED) |
| 47D | FASTENER-EDGE MTG (NOT ILLUSTRATED) |
| 47 | WCI 08067743 |
