REM638BDL5 04 – DOOR

REM638BDL5 04 – DOOR

Written by

in

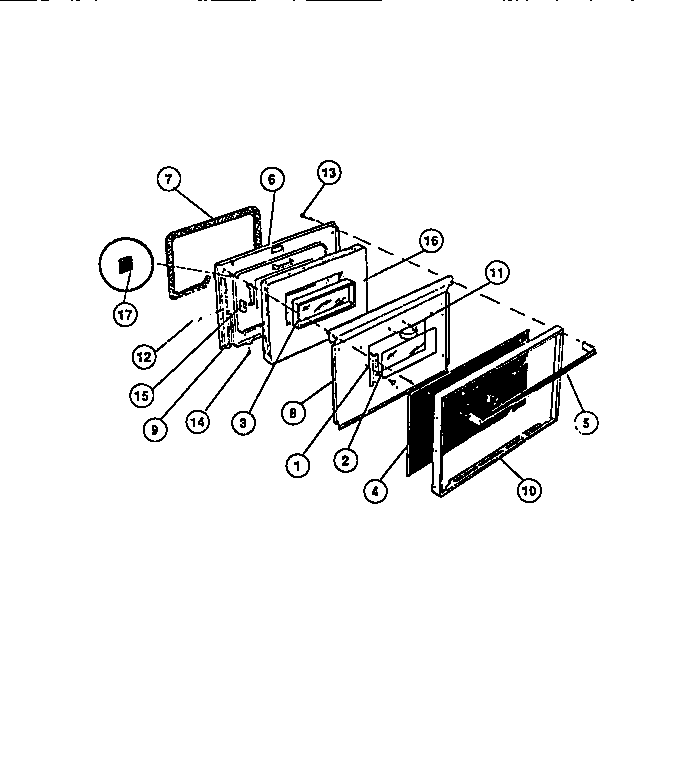

REM638BDL5 04 – DOOR

Products

PositionProduct
1WCI 08067996
2WCI 5303051148
3GLASS PKG
4GLASS FRNT
5WCI 08067968
6WCI 3931014
75303131601 Frigidaire Oven Seal
8WCI 08067805
9SUPPORT, GLASS
10WCI 08067807
11WCI 3131253
12FSTNR. SPACER (6)
13SCREW-HNDL MT (2)
14SCREW DOOR MTG
15B5303300265 Frigidaire Oven Screw
15WCI 08067799
15AWCI 08010463
16INSULATION, WOOL
17SEAL, FOAM (4)
