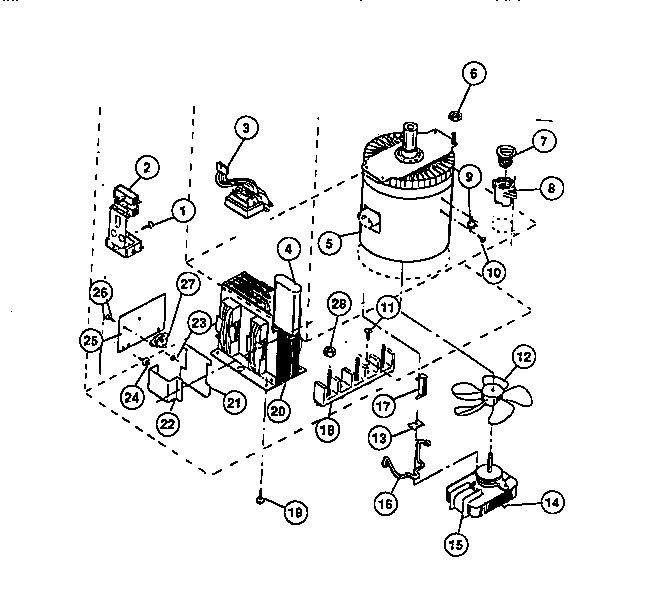

REM638BDL5 09 – MICROWAVE OVEN MAGNETRON, TRANSFORM

Products

PositionProduct
1WCI 08010488
2SWITCH KIT
3WCI 5308010486
4CAPACITOR – HV
5WCI 5303204035
6WCI 5308008918
7FUSE
8SOCKET
9SWITCH
10SCREW – SWITCH (2) (NON-ILLUSTRATED)
11WCI 08010492
12WCI 5303011668
13CHANNEL
15WCI 5303011677
17DIODE HIGH VOLTAGE
185304409888 Frigidaire Oven Terminal Block with Hardware
19WCI 5308008933
20TRANSFORMER H.V.
21SHIELD CAPACITOR
22RETAINER
23NUT (2)
24SCREW-WRAPPER (13)
25WCI 08010489
26WCI 5308008923
27TRIAC
28BHARNESS MAIN
28CWCI 08012062
28WCI 08067783
28AWCI 5308010494
28FWCI 08037895
28EWCI 5308037894
28GWCI 5308010478
28DWCI 5303091204
