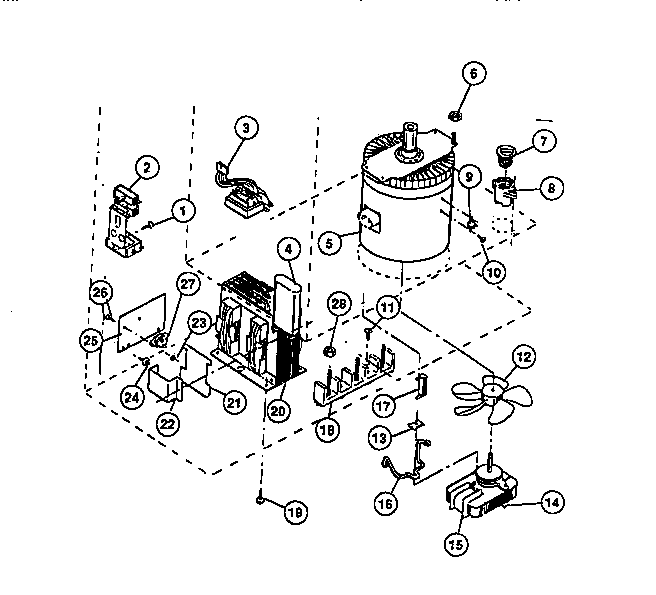

REM638BDL6 09 – MICROWAVE OVEN MAGNETRON, TRANSFORM

Products

Position	Product
1	WCI 08010488
2	SWITCH KIT
3	WCI 5308010486
4	CAPACITOR – HV
5	WCI 5303204035
6	WCI 5308008918
7	FUSE
8	SOCKET
9	SWITCH
10	SCREW – SWITCH (2) (NON-ILLUSTRATED)
11	WCI 08010492
12	WCI 5303011668
13	CHANNEL
15	WCI 5303011677
17	DIODE HIGH VOLTAGE
18	5304409888 Frigidaire Oven Terminal Block with Hardware
19	WCI 5308008933
20	TRANSFORMER H.V.
21	SHIELD CAPACITOR
22	RETAINER
23	NUT (2)
24	SCREW-WRAPPER (13)
25	WCI 08010489
26	WCI 5308008923
27	TRIAC
28B	HARNESS MAIN
28C	WCI 08012062
28	WCI 08067783
28A	WCI 5308010494
28F	WCI 08037895
28E	WCI 5308037894
28G	WCI 5308010478
28D	WCI 5303091204
