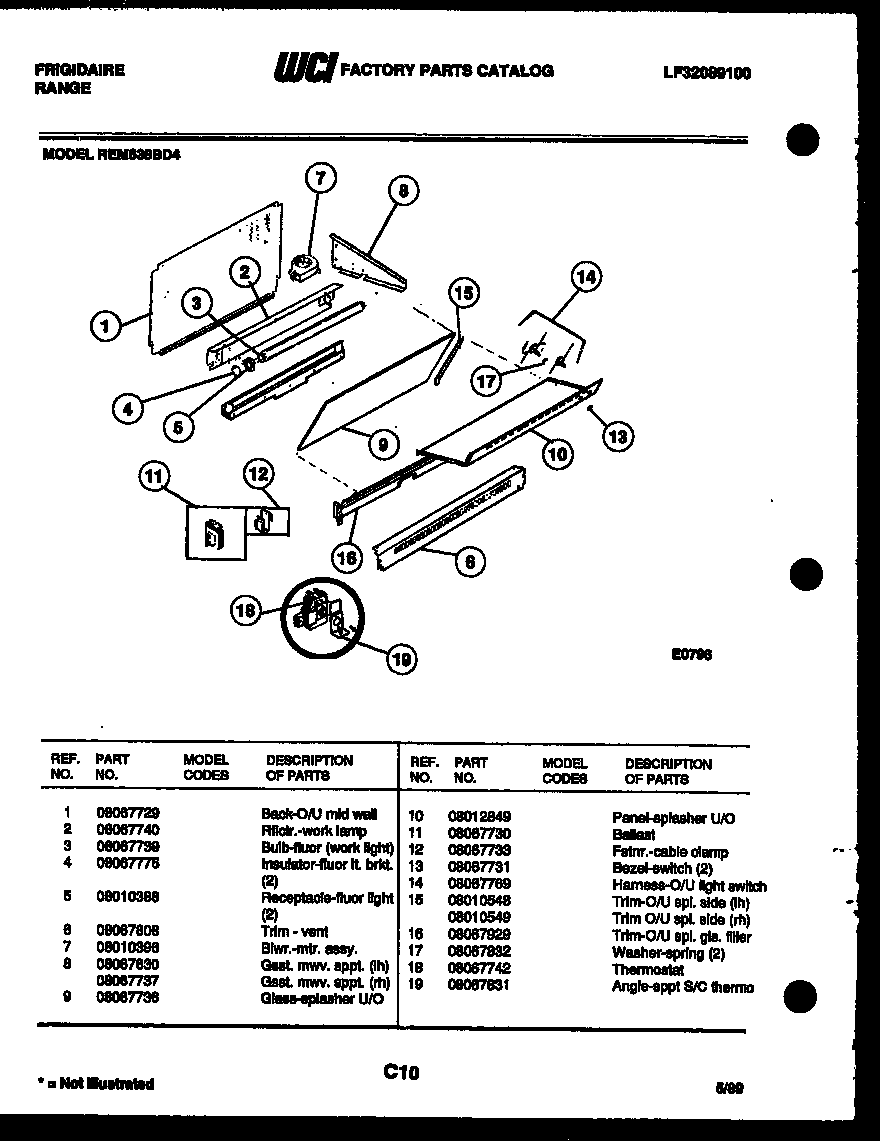

REM638BDW4 02 – SPLASHER CONTROL

REM638BDW4 02 – SPLASHER CONTROL

Written by

in

REM638BDW4 02 – SPLASHER CONTROL

Products

PositionProduct
1WCI 08067729
2REFLECTOR-WORK LAMP
3WCI 08067739
4INSULATOR-FLUOR LIGHT RECEPTACLE (2)
5WCI 08010388
6WCI 08067808
7BLOWER MTR ASSY.
8WCI 08067830
8AWCI 08067737
9GLASS-SPLASHER O/U
10WCI 08012849
11WCI 08067730
12FSTNR., CABLE CLAMP
13WCI 08067731
14HARNS-O/U LITE SW.
15WCI 08010548
15AWCI 08010549
16TRIM-O/U SPL. G. FILLER
17WASHER, SPRING (2)
18WCI 08067742
19ANGLE SUPT S/C THERMO.
