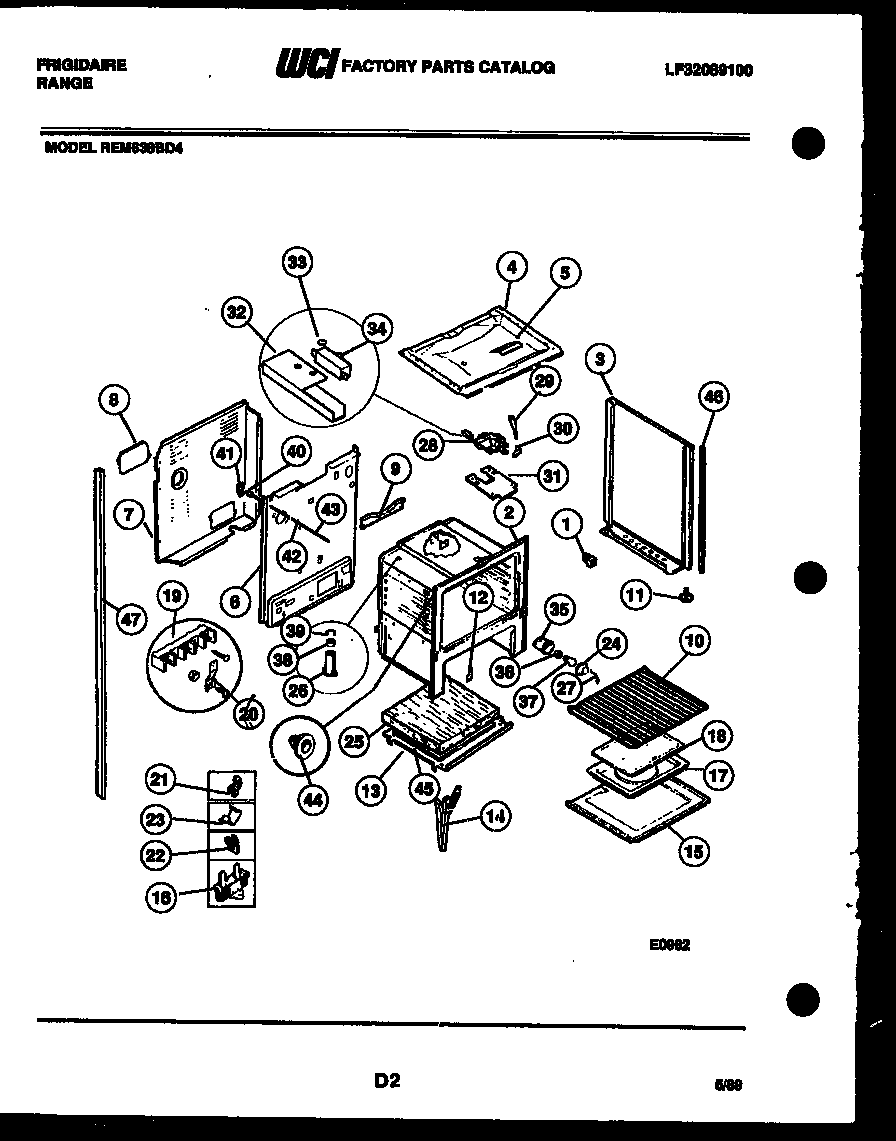

REM638BDW4 08 – LOWER BODY PARTS

Products

Position	Product
*34946	ANTI-TIP KIT (NOT ILLUSTRATED)
*34944	INSULATION, OVEN WRAPPER
*34945	BRKT, RANGE CABLE MTG (NON-ILLUSTRATED)
*34944	FASTENER-EDGE MTG (NOT ILLUSTRATED)
*34944	SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
1	SOCKET-OVEN LIGHT
3A	B/S-RH-(WHITE)
3	B/S-LH-(WHITE)
4	WCI 08067749
5	WCI 08067757
6	WCI 08067728
7	WCI 03203408
8	COVER-ACCESS
9	WCI 08067755
10	316067902 Frigidaire Oven Rack
11	WCI 08010569
12	CVR-HNG CUTOUT (2)
13	SHIELD, OVEN BOTTOM
14	WCI 316007002
15	WCI 0867745
16	WCI 08067764
17	BROILER PAN
18	WCI 08016608
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	WCI 08011708
21	WCI 08067754
22	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
23	WCI 08067753
24	WCI 08067765
25	316403803 Frigidaire Insulation
26	WCI 08067811
27	WIRE-GLASS RETAINR
27A	INSULATION-WRAP (NON-ILLUSTRATED)
27D	WCI 08067836
27E	WCI 8067783
27C	3131903 Frigidaire Door/Drawer Bumper
27B	INSULATION-BACK (NON-ILLUSTRATED)
28	WCI 3051258
29	WCI 08067777
30A	WCI 08013188
30	WCI 08013189
31	SHIELD-BI MTL LATCH
32	WCI 08067780
33	FSTNR-PUSH ON
34	WCI 08067781
35	WCI 08067809
36	316116400 Frigidaire Oven Light Socket
37	316538904 Frigidaire Oven Lamp Light
38	WCI 08067310
39	WCI 08010606
40	WCI 08010563
41	WCI 08067748
42	ROD, LIGHT
43	WCI 08067758
44	WCI 08067750
45	WCI 3200848
45A	INSULATION, TOUCH (NON-ILLUSTRATED)
46	TRIM-VERTICAL BODYSIDE (2)
47	WCI 08067743
47A	WCI 08067744
