REM638BDW5 08 – LOWER OVEN, FRAME, SHELVES

REM638BDW5 08 – LOWER OVEN, FRAME, SHELVES

Written by

in

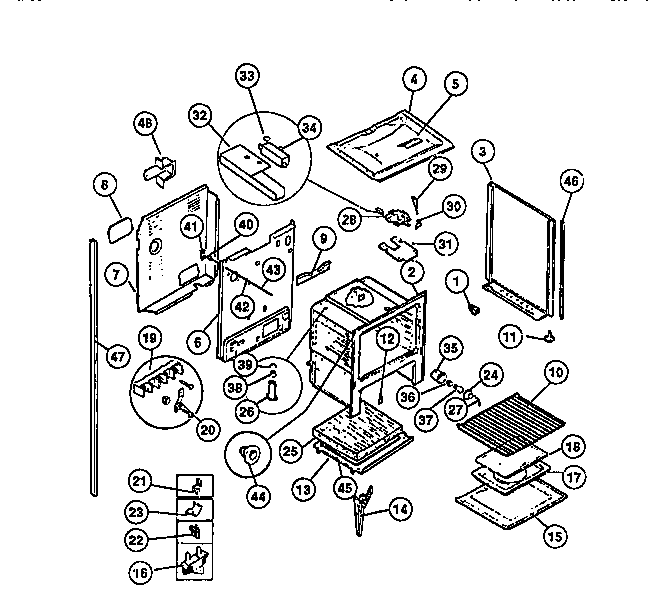

REM638BDW5 08 – LOWER OVEN, FRAME, SHELVES

Products

PositionProduct
1SPACER-BODYSIDE, (8)
2WIRING HARNESSES ARE NOT AVAILABLE FOR THIS MODEL
3PNL-BODYSIDE LH-WHITE
3BPNL-BODYSIDE RH-WHITE
4WCI 08067749
5WCI 08067757
6WCI 3203082
7SHIELD-REAR WALL, LOWER
8COVER-ACCESS
9COVER-FLUE
10316067902 Frigidaire Oven Rack
11SCREW-LEVELING
12WCI 3131570
13SHIELD, OVEN BOTTOM
14WCI 316007002
15PANEL-OVEN BOTTOM
16WCI 5303051385
17PAN-BROILER
18WCI 5303131356
195304409888 Frigidaire Oven Terminal Block with Hardware
20WCI 08011708
21WCI 08067754
223051162 Frigidaire Oven Range Front Broiler Drawer Glide
23WCI 3051367
245304524341 Frigidaire Lens
25316403803 Frigidaire Insulation
26WCI 3051344
27BINSULATION-BACK (NON-ILLUSTRATED)
27AINSULATION-WRAP (NON-ILLUSTRATED)
27EWCI 8067783
27RETAINER-GLASS
27DWCI 08067836
28WCI 5303015361
29WCI 08067975
30AWCI 08013188
30WCI 5308010597
31SHIELD-BI MTL LATCH
32WCI 08067780
33FSTNR-PUSH ON
34WCI 08067781
35WCI 08067809
36316116400 Frigidaire Oven Light Socket
37316538904 Frigidaire Oven Lamp Light
38WCI 08067810
39WCI 08010606
40WCI 695T128P03
41WCI 08067748
42ROD, LIGHT
43WCI 08067758
44WCI 08067750
45WCI 3200848
45AWCI 3131305
46TRIM-VERTICAL BODYSIDE (2)
47BWCI 08067744
47WCI 08067743
48BSHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
48DINSULATION, OVEN WRAPPER
48CFASTENER-EDGE MTG (NOT ILLUSTRATED)
48WCI 3203582
48EBRKT, RANGE CABLE MTG (NON-ILLUSTRATED)
48FANTI-TIP KIT (NOT ILLUSTRATED)
48A3131903 Frigidaire Door/Drawer Bumper
