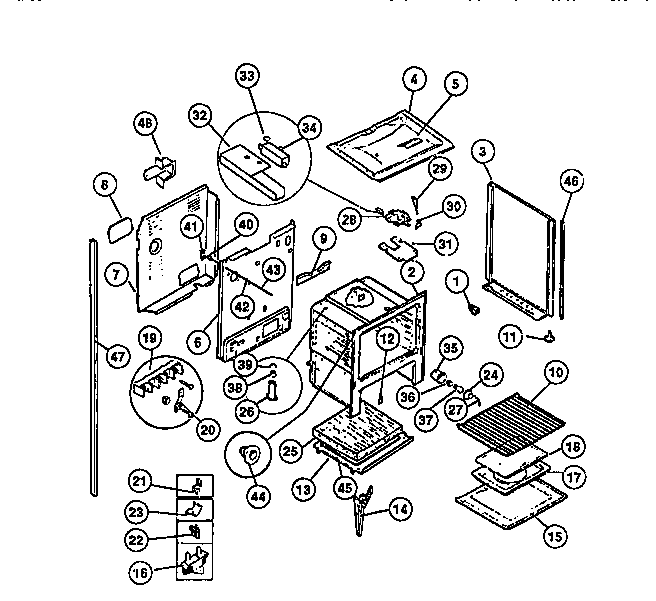

REM638BDW6 08 – LOWER OVEN, FRAME, SHELVES

Products

Position	Product
1	SPACER-BODYSIDE, (8)
2	WIRING HARNESSES ARE NOT AVAILABLE FOR THIS MODEL
3	PNL-BODYSIDE LH-WHITE
3B	PNL-BODYSIDE RH-WHITE
4	WCI 08067749
5	WCI 08067757
6	WCI 3203082
7	SHIELD-REAR WALL, LOWER
8	COVER-ACCESS
9	COVER-FLUE
10	316067902 Frigidaire Oven Rack
11	SCREW-LEVELING
12	WCI 3131570
13	SHIELD, OVEN BOTTOM
14	WCI 316007002
15	PANEL-OVEN BOTTOM
16	WCI 5303051385
17	PAN-BROILER
18	WCI 5303131356
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	WCI 08011708
21	WCI 08067754
22	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
23	WCI 3051367
24	5304524341 Frigidaire Lens
25	316403803 Frigidaire Insulation
26	WCI 3051344
27D	WCI 08067836
27B	INSULATION-BACK (NON-ILLUSTRATED)
27	RETAINER-GLASS
27E	WCI 8067783
27A	INSULATION-WRAP (NON-ILLUSTRATED)
28	WCI 5303015361
29	WCI 08067975
30	WCI 5308010597
30A	WCI 08013188
31	SHIELD-BI MTL LATCH
32	WCI 08067780
33	FSTNR-PUSH ON
34	WCI 08067781
35	WCI 08067809
36	316116400 Frigidaire Oven Light Socket
37	316538904 Frigidaire Oven Lamp Light
38	WCI 08067810
39	WCI 08010606
40	WCI 695T128P03
41	WCI 08067748
42	ROD, LIGHT
43	WCI 08067758
44	WCI 08067750
45A	WCI 3131305
45	WCI 3200848
46	TRIM-VERTICAL BODYSIDE (2)
47A	WCI 5303208642
47C	TUBE-POST LH
48D	INSULATION, OVEN WRAPPER
48F	ANTI-TIP KIT (NOT ILLUSTRATED)
48A	3131903 Frigidaire Door/Drawer Bumper
48B	SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
48	WCI 3203582
48E	BRKT, RANGE CABLE MTG (NON-ILLUSTRATED)
48C	FASTENER-EDGE MTG (NOT ILLUSTRATED)
