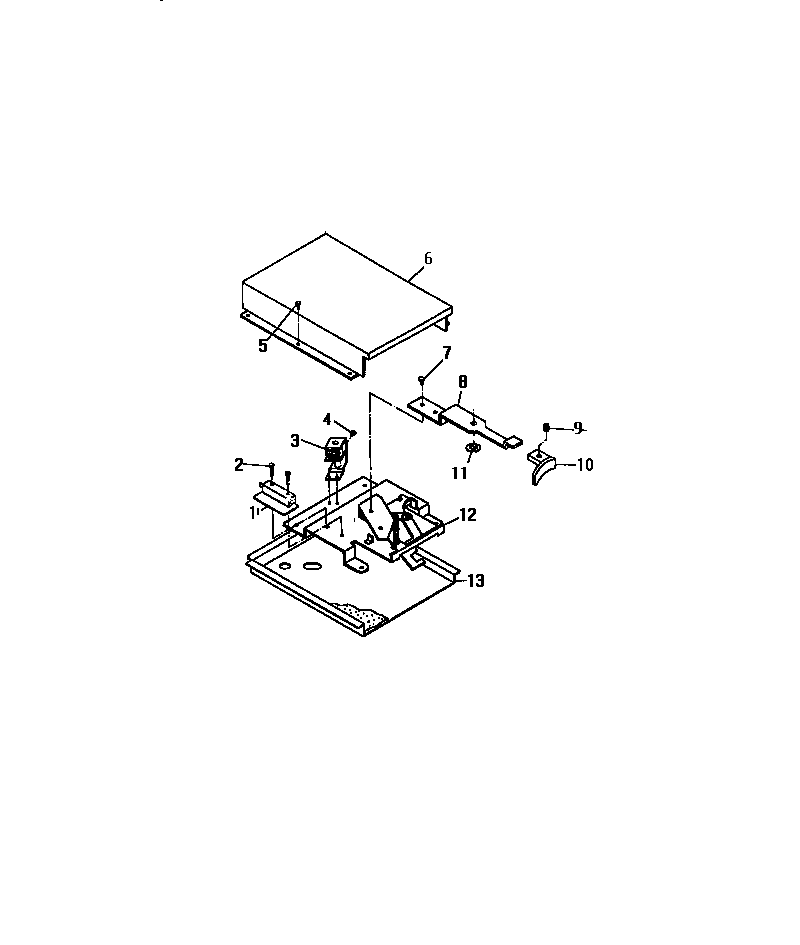

REM638MH7 04 – DOOR LATCH MECHANISM
Products
| Position | Product |
|---|---|
| 1 | WCI 8010593 |
| 2 | WCI 8008935 |
| 3 | WCI 8010908 |
| 4 | WCI 8012194 |
| 5 | SCREW (2) |
| 6 | WCI 8010590 |
| 7 | WCI 8011698 |
| 8 | WCI 8014092 |
| 9 | WCI 8013188 |
| 10 | WCI 8013189 |
| 11 | WCI 8010594 |
| 12 | LOCK, DOOR |
| 13 | WCI 8011696 |
