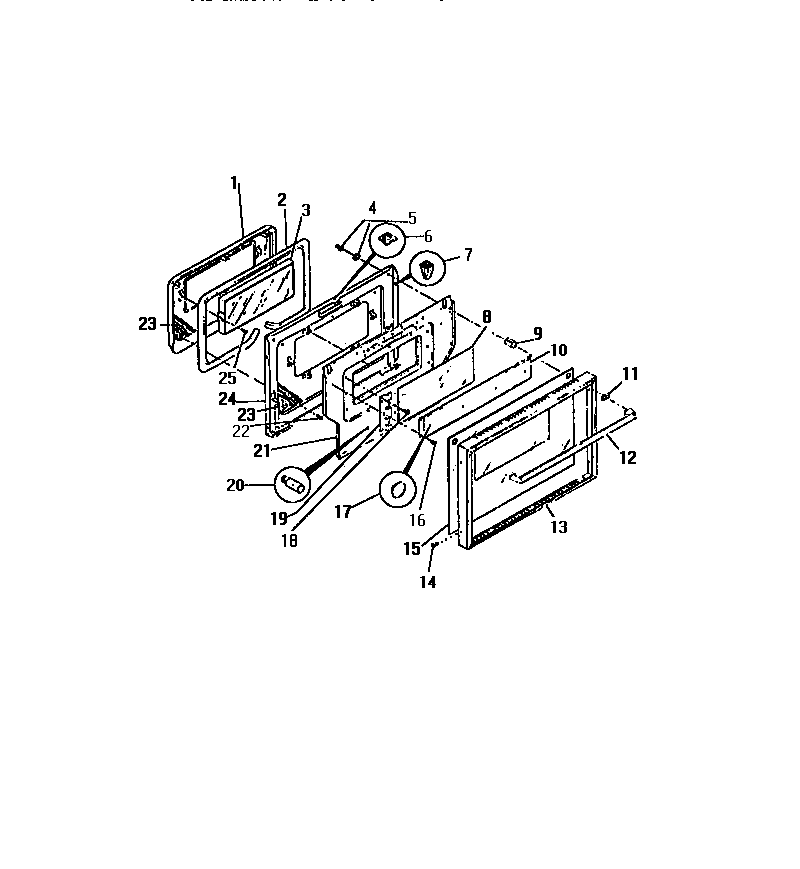

REM638MH8 08 – LOWER OVEN DOOR, PANELS

REM638MH8 08 – LOWER OVEN DOOR, PANELS

Written by

in

REM638MH8 08 – LOWER OVEN DOOR, PANELS

Products

PositionProduct
*59283WCI 8012501
*59282SPACER, 5/8 INCH, RED
1WCI 8016609
2WCI 8010449
3WCI 8010450
4WCI 8016494
5WCI 8013186
6WCI 8010463
7WCI 8010464
8WCI 8010454
9WCI 8010461
10DEFLECTOR (INCL. GLIDES) (4)
11SPACER, BLACK (2)
12WCI 8010459
13WCI 8013185
14SCREW (2)
15WCI 8010457
16SCREW (2)
17WCI 8010594
18WCI 8011735
19RETAINER, INNER GLASS (2)
20WCI 8010453
21WCI 8013184
22WCI 8011734
24WCI 8016610
25WCI 8010465
