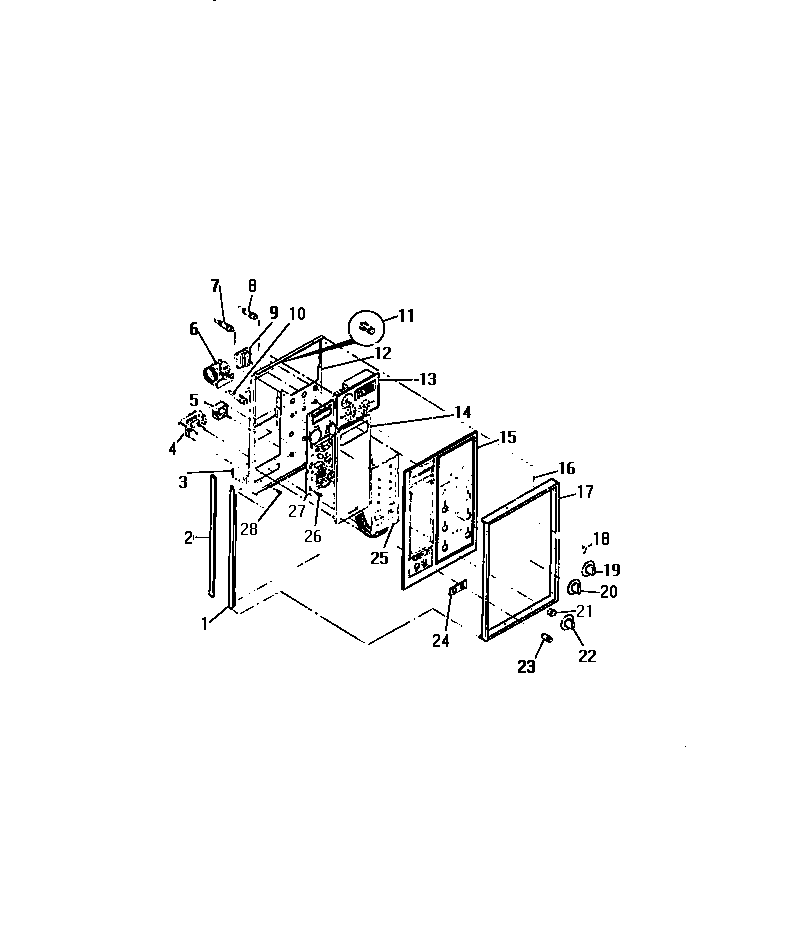

REM638ML7 02 – CONTROL PANEL, COOK-MASTER, SWITCHE

REM638ML7 02 – CONTROL PANEL, COOK-MASTER, SWITCHE

Written by

in

REM638ML7 02 – CONTROL PANEL, COOK-MASTER, SWITCHE

Products

PositionProduct
1WCI 8011888
2WCI 8010420
3WCI 8010615
4WCI 8008910
5WCI 8010418
6WCI 8010417
7LIGHT, CLEAN PILOT, AMBER
8LIGHT, UPPER AND LOWER OVEN PILOT, AMBER
9WCI 8010416
10LIGHT, LOCK PILOT, RED
11WCI 8010409
12WCI 8010419
13WCI 8010408
14WCI 8014094
15WCI 8010407
17WCI 8011886
18WCI 8010404
19WCI 8010403
20WCI 8014093
21BUSHING (2)
22KNOB, SURFACE UNIT (4)
23WCI 8010399
24WCI 8010410
25WCI 8010411
26SUPPORT-RACK LS (2) (NON-ILLUSTRATED)
27WCI 8012021
28SCREW (2)
