REM638ML8 02 – CONTROL PANEL, COOK-MASTER, SWITCHE

REM638ML8 02 – CONTROL PANEL, COOK-MASTER, SWITCHE

Written by

in

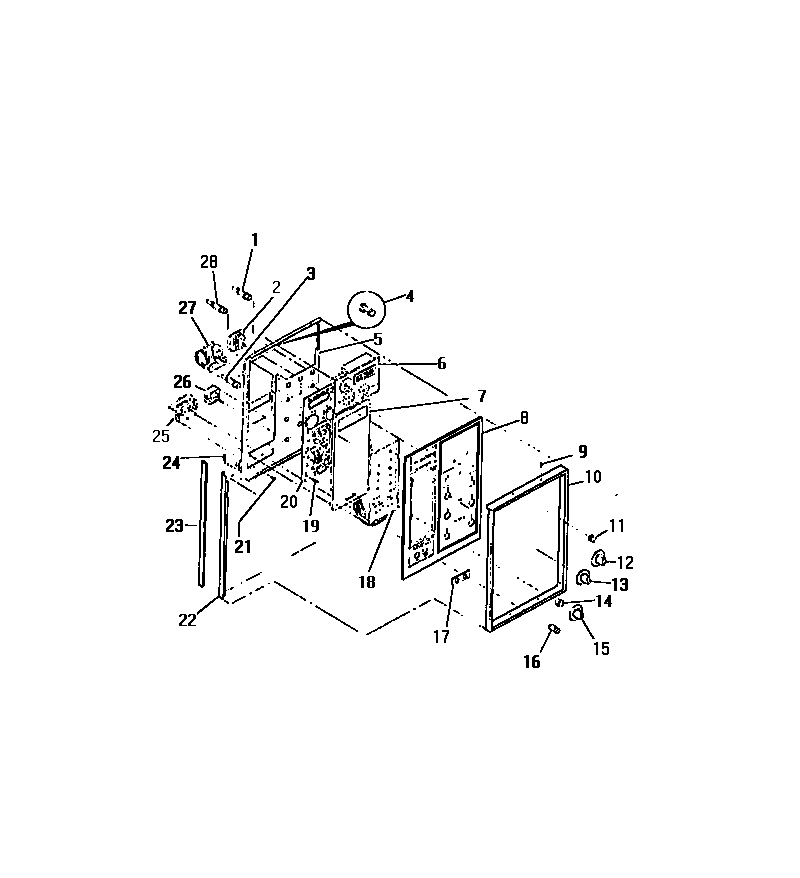

REM638ML8 02 – CONTROL PANEL, COOK-MASTER, SWITCHE

Products

PositionProduct
1LIGHT, UPPER AND LOWER OVEN PILOT, AMBER
2WCI 8010416
3LIGHT, LOCK PILOT, RED
4WCI 8010409
5WCI 8010419
6WCI 8010408
7WCI 8014094
8WCI 8010407
10WCI 8011886
11WCI 8010404
12WCI 8010403
13WCI 8014093
14BUSHING (2)
15KNOB, SURFACE UNIT (4)
16WCI 8010399
17WCI 8010410
18WCI 8010411
19SUPPORT-RACK LS (2) (NON-ILLUSTRATED)
20WCI 8012021
21SCREW (2)
22WCI 8011888
23WCI 8010420
24WCI 8010615
25WCI 8008910
26WCI 8010418
27WCI 8010417
28LIGHT, CLEAN PILOT, AMBER
