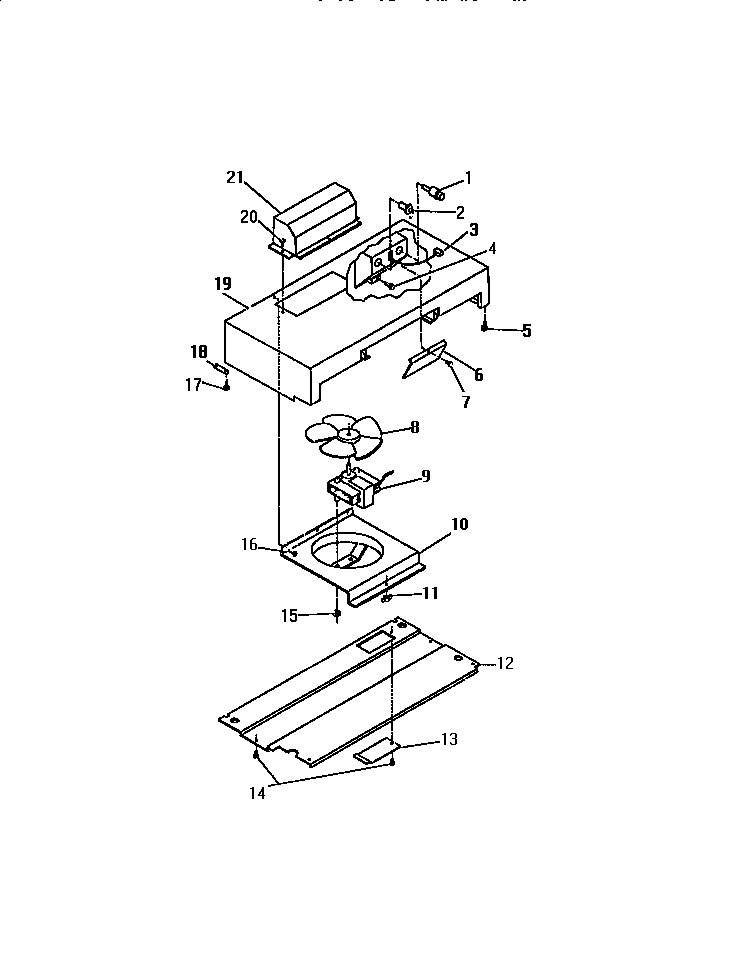

REM638ML8 13 – VENT HOOD DUCTED & DUCTLESS ASSEMBL

Products

Position	Product
1	FUSE, 10 AMP SPECIAL (INCL. CAP)
2	WCI 8010633
3	HARNESS, INCL. PLUG
4	WCI 8010631
5	SCREW (2)
6	WCI 8010629
8A	FAN (HF-30M)
8	FAN (HV-30M)
9A	MOTOR (HF-30M)
9	MOTOR (HV-30M)
10	BRACKET (HV-30M)
10A	BRACKET (HF-30M)
11	NUT, WING (HV-30M)
12	WCI 8010628
13	WCI 8010627
15	NUT (2)
17	SCREW (2)
18	BRACKET (2)
19A	HOUSING ASSEMBLY (INCL. ROLLERS) (HF-30M)
19	HOUSING ASSEMBLY (INCL ROLLERS) (HV-30M)
20	SCREW (2) (HV-30M)
21	DAMPER (HV-30M)
