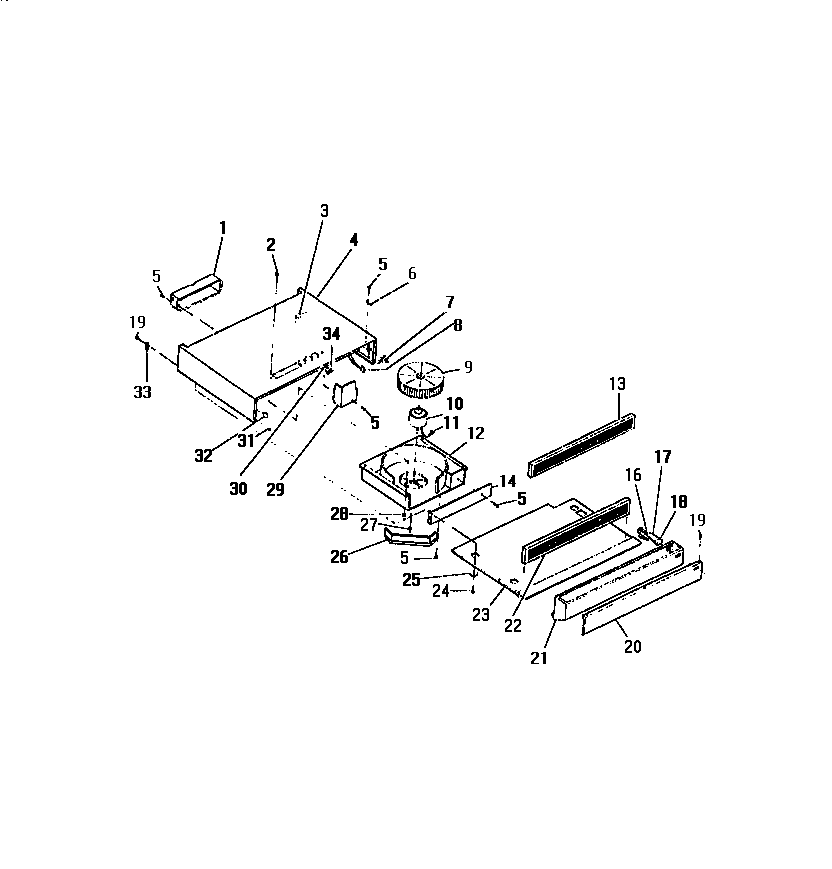

REM638ML8 14 – CONVERTIBLE EYE-LEVEL VENT HOODS

REM638ML8 14 – CONVERTIBLE EYE-LEVEL VENT HOODS

Written by

in

REM638ML8 14 – CONVERTIBLE EYE-LEVEL VENT HOODS

Products

PositionProduct
1WCI 8013833
3BUSHING, WIRE (2)
4AHOUSING, BLACK
4HOUSING, ALMOND
6WCI 8013836
7SWITCH ON-OFF (INCL. MOUNTING NUTS)
8HARNESS TO MOTOR
9WHEEL-BLOWER (INCL. SET SCREW)
10WCI 8013839
11WCI 8013845
12WCI 8013838
13WCI F30
14WCI 8013841
16WCI 8013825
17WCI 8013824
18WCI 8013822
20WCI 8013821
21WCI 8013823
22WCI 8013826
23WCI 8013829
27WCI 8013837
29WCI 8013830
30HARNESS TO RANGE
32WCI 8013828
33RETAINER TO PRODUCT (2)
34WCI 8013846
