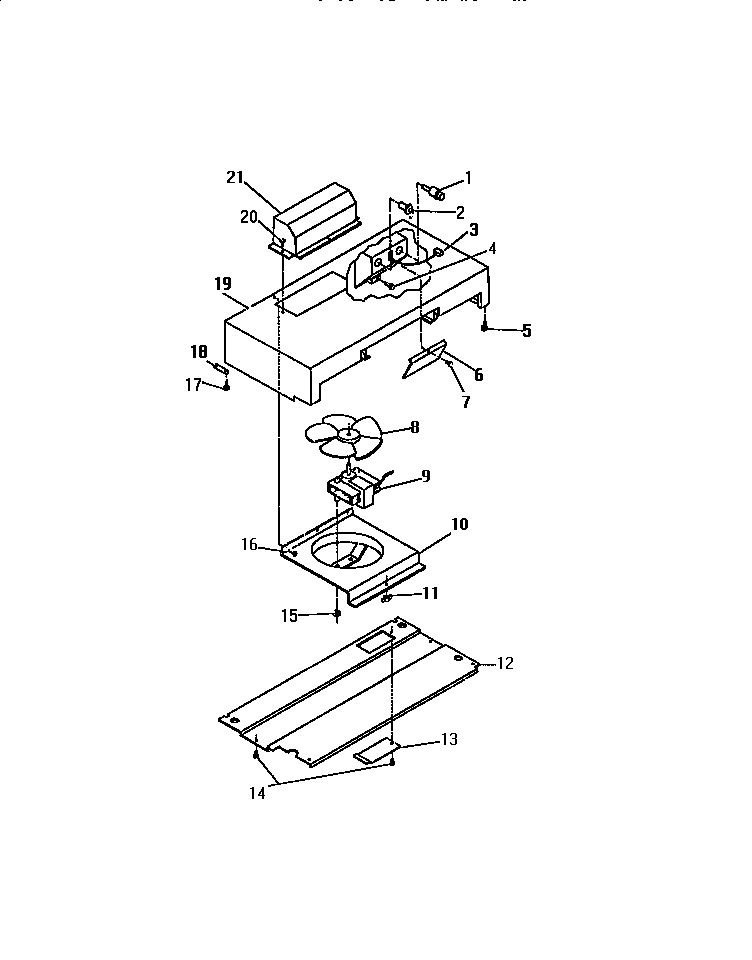

REM638MM8 13 – VENT HOOD DUCTED & DUCTLESS ASSEMBL

Products

PositionProduct
1FUSE, 10 AMP SPECIAL (INCL. CAP)
2WCI 8010633
3HARNESS, INCL. PLUG
4WCI 8010631
5SCREW (2)
6WCI 8010629
8AFAN (HF-30M)
8FAN (HV-30M)
9AMOTOR (HF-30M)
9MOTOR (HV-30M)
10BRACKET (HV-30M)
10ABRACKET (HF-30M)
11NUT, WING (HV-30M)
12WCI 8010628
13WCI 8010627
15NUT (2)
17SCREW (2)
18BRACKET (2)
19AHOUSING ASSEMBLY (INCL. ROLLERS) (HF-30M)
19HOUSING ASSEMBLY (INCL ROLLERS) (HV-30M)
20SCREW (2) (HV-30M)
21DAMPER (HV-30M)
