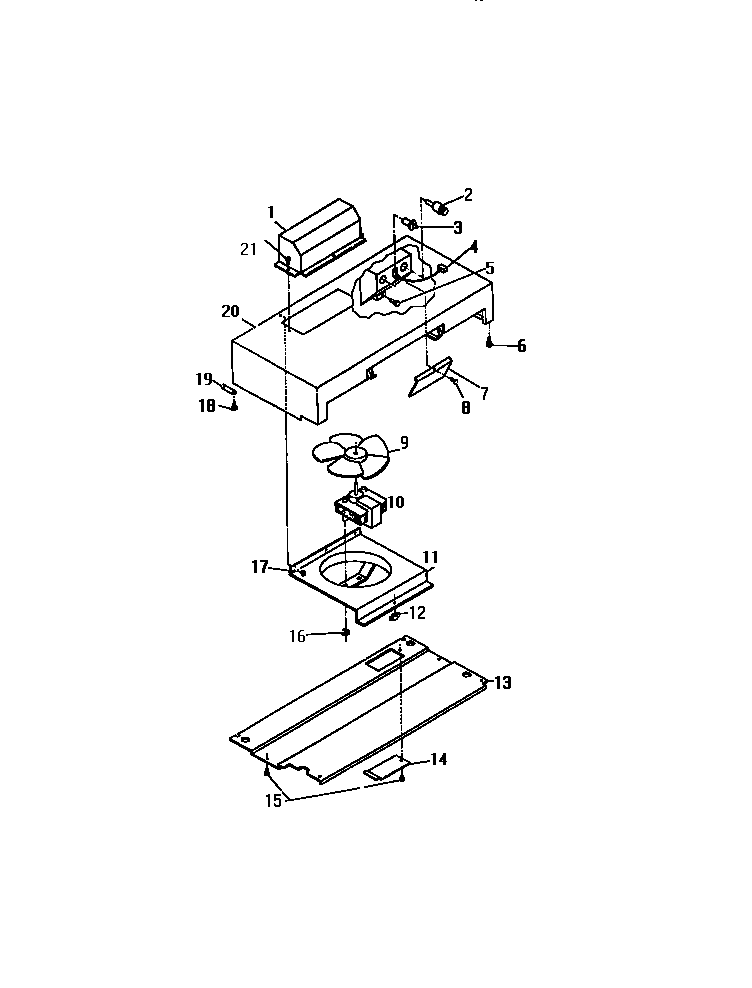

REM638MW7 13 – VENT HOOD DUCTED AND DUCTLESS ASSEM

Products

PositionProduct
1DAMPER (HV-30M)
2FUSE, 10 AMP SPECIAL (INCL. CAP)
3WCI 8010633
4HARNESS, INCL. PLUG
5WCI 8010631
6SCREW (2)
7WCI 8010629
9AFAN (HF-30M)
9FAN (HV-30M)
10AMOTOR (HF-30M)
10MOTOR (HV-30M)
11BRACKET (HV-30M)
11ABRACKET (HF-30M)
12NUT, WING (HV-30M)
13WCI 8010628
14WCI 8010627
16NUT (2)
18SCREW (2)
19BRACKET (2)
20AHOUSING ASSEMBLY (INCL. ROLLERS) (HF-30M)
20HOUSING ASSEMBLY (INCL ROLLERS) (HV-30M)
21SCREW (2) (HV-30M)
