REM77BCB2 05 – OVEN DOOR, PANELS, GLASS – Aparts

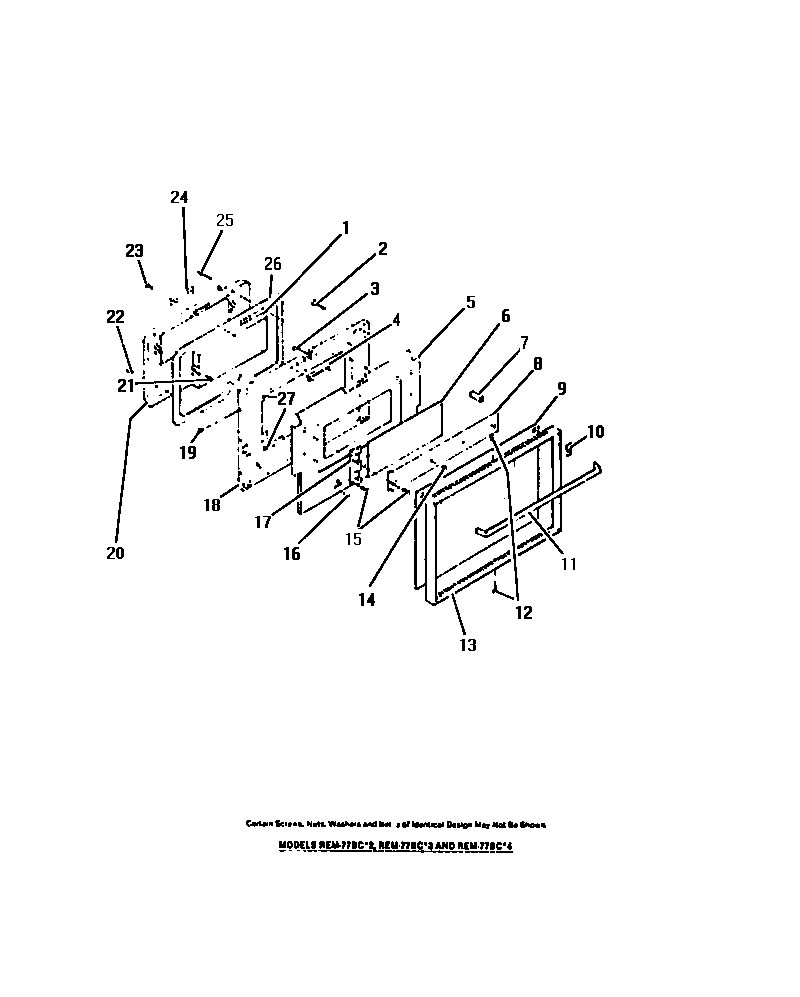

REM77BCB2 05 – OVEN DOOR, PANELS, GLASS

Products

Position	Product
1	WCI 8010450
2	SCREW (2)
3	WCI 8010463
4	WCI 8012090
5	WCI 8012085
6	WCI 8010454
7	SPACER (2)
8	WCI 8012084
9	WCI 8012079
10	WCI 8012087
11	WCI 8014475
12	WCI 8010391
13	WCI 8014515
14	WCI 8014491
16	WCI 8010453
17	RETAINER, INNER GLASS (2)
18	WCI 8014482
19	SPACER, 1/8 INCH
19A	SPACER, 5/8 INCH, RED
20	WCI 8012095
22	WCI 8011735
23	SCREW (2)
24	WCI 8012094
25	WCI 8016999
26	WCI 8012092
27	NUT
