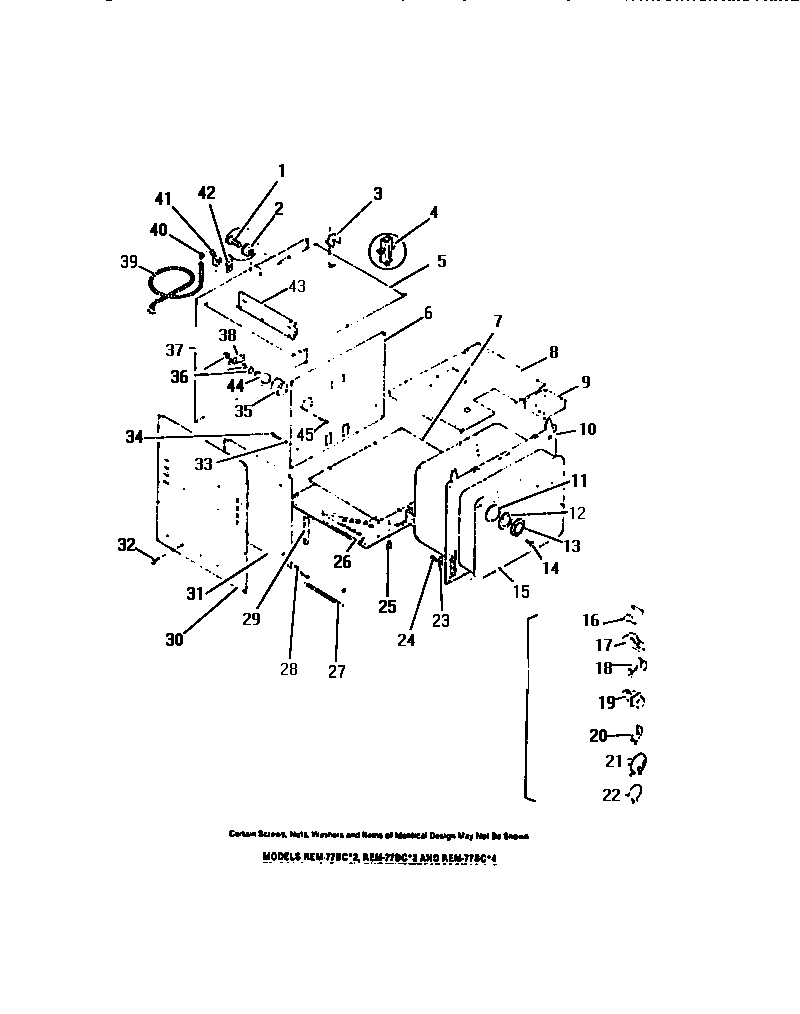

REM77BCB3 03 – OVEN LINER, PANELS, DOOR HINGES, OV

Products

Position	Product
*11840	SCREW, OVEN TO CABINET, 6AB X 1, PHILLIP HEAD, OVEN, HE
*11841	SCREW, OVEN TO CABINET, 8A X 2 1/4, PHILLIP HEAD, OVEN
1	WCI 8012119
2	WCI 8011725
3	WCI 8014457
4	WCI 8014494
5	WCI 8014454
6	WCI 8012180
7	WCI 8012176
8	WCI 8014507
9	WCI 8012148
10	WCI 8014471
11	LENS
12	WCI 8010610
13	WCI 8010609
15	WCI 8014483
16	WCI 8012196
17	WCI 8010430
18	WCI 8012198
19	WCI 8014511
20	WCI 8010556
21	WCI 8012195
22	WCI 8012197
23	WCI 8017002
24	GROMMET (2)
25	WCI 8010560
26	WCI 8014432
27	WCI 8012161
28	WCI 8012162
29	BAFFLE, RH AND LH (2)
30	PANEL, SIDE, LH AND RH (2)
31	PANEL, INNER, RH AND LH (2)
33	WASHER
34	WCI 8010579
35	WCI 8010586
36	WCI 8010584
37	WCI 8014521
38	WCI 8010585
40	WCI 8012121
41	WCI 8012117
42	WCI 8012118
43	WCI 8014428
43A	WCI 8014427
45	SCREW (2)
