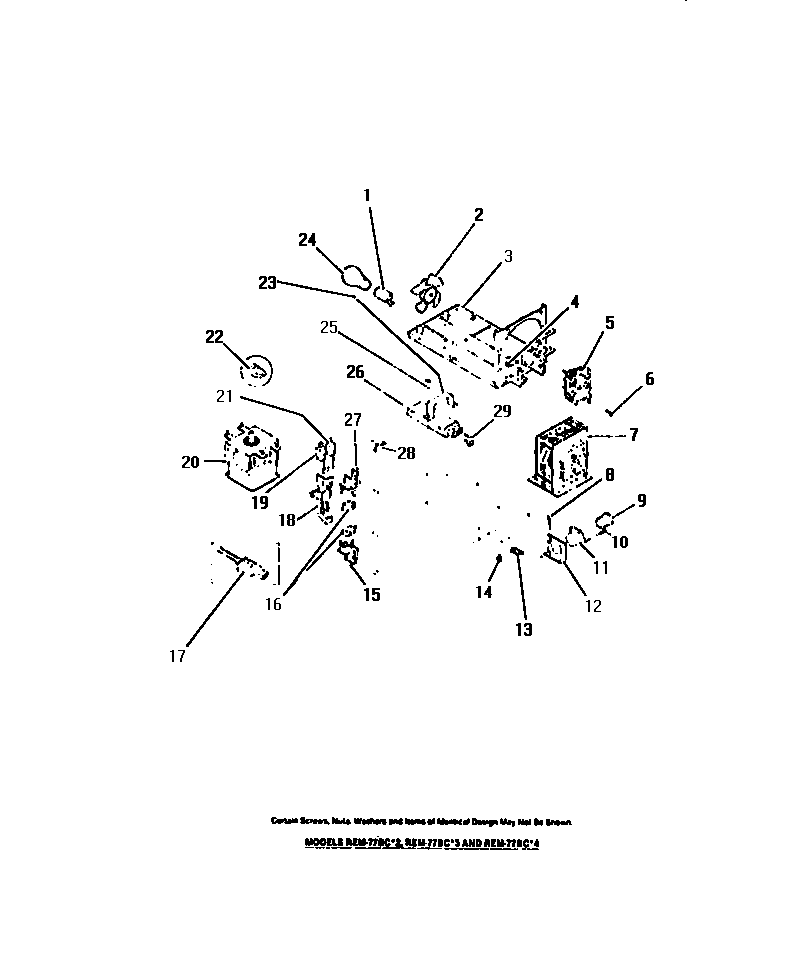

REM77BCB4 09 – MICROWAVE MAGNETRON, FAN MOTOR, BLA

Products

PositionProduct
*11851WCI 8016988
*11853HARNESS, WIRING, INTERLOCK
*11849HARNESS, WIRING, MAGNETRON
*11848HARNESS, WIRING, POWER SUPPLY
1RECEPTACLE, LIGHT
2WCI 8012182
3WCI 8014459
4WCI 8016993
5WCI 8014445
6SCREW (2)
7WCI 8014096
8SCREW (2)
10SCREW (2)
11WCI 8012055
12WCI 8008973
13WCI 8010554
14SCREW-TRANSFORM (2)
16AWCI 8014446
17WCI 8014493
18WCI 8014438
20WCI 8014444
21WCI 8016982
22WCI 8008983
23WCI 8016995
25SCREW-AIR DUCT CHANNEL (2) (NON-ILLUSTRATED)
26WCI 8014442
27BRACKET, UPPER
28WCI 8014472
29WCI 8014443
