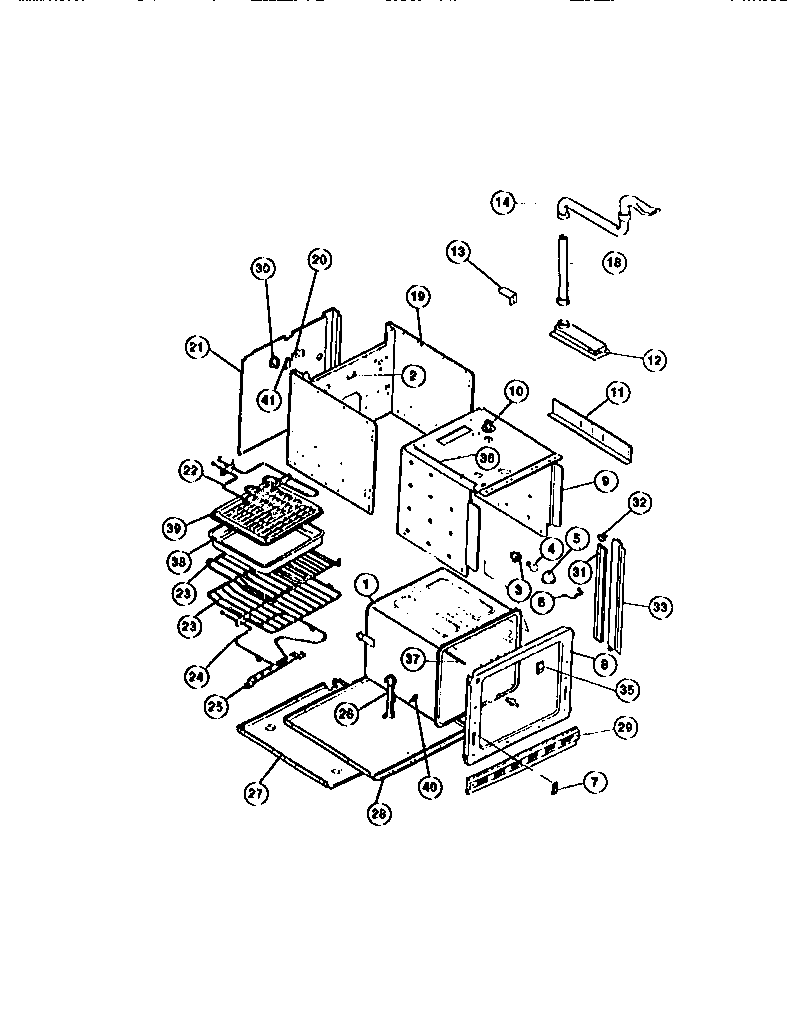

REM77BL2 03 – BODY PARTS

Products

Position	Product
*47092	WCI 19100250006
*47092	RETAINER-LENS
1	WCI 5303272462
2	WCI 3204594
3	316116400 Frigidaire Oven Light Socket
4	316538904 Frigidaire Oven Lamp Light
5	5304524341 Frigidaire Lens
6	WIRE, GLASS RETAINER
7	WCI 3019063
8	WCI 3202076
9	WCI 3016272
10	TUBE-OVEN VENT
11	SUPPORT-HEIGHT ADJUSTMENT (2)
12	WCI 3016324
13	WCI 3016326
14	WCI 5303206735
18	WCI 3019056
19	WCI 3016275
20	WCI 3016281
21	WCI 3019061
22	5303016247 Frigidaire Broil Element
23A	318345216 Frigidaire Oven Rack
24	318255101 Frigidaire Oven Bake Element
25	WCI 3016248
26	WCI 3201631
27	WCI 3016277
28	SHIELD-INSUL BASE
29	WCI 3202141
30	SWITCH
31A	WCI 3019049
31	WCI 3019050
32	WCI 3202143
32A	WCI 3202142
33	WCI 5303209149
35	WCI 3202082
35B	INSULATION – BACK (NON-ILLUSTRATED)
35A	INSULATION-WRAP
36	WCI 3202077
37	316217002 Frigidaire Oven Temperature Probe
38	WCI 3205539
39	GRILLE, BROILER
40	WCI 3201632
41	WCI 3202384
