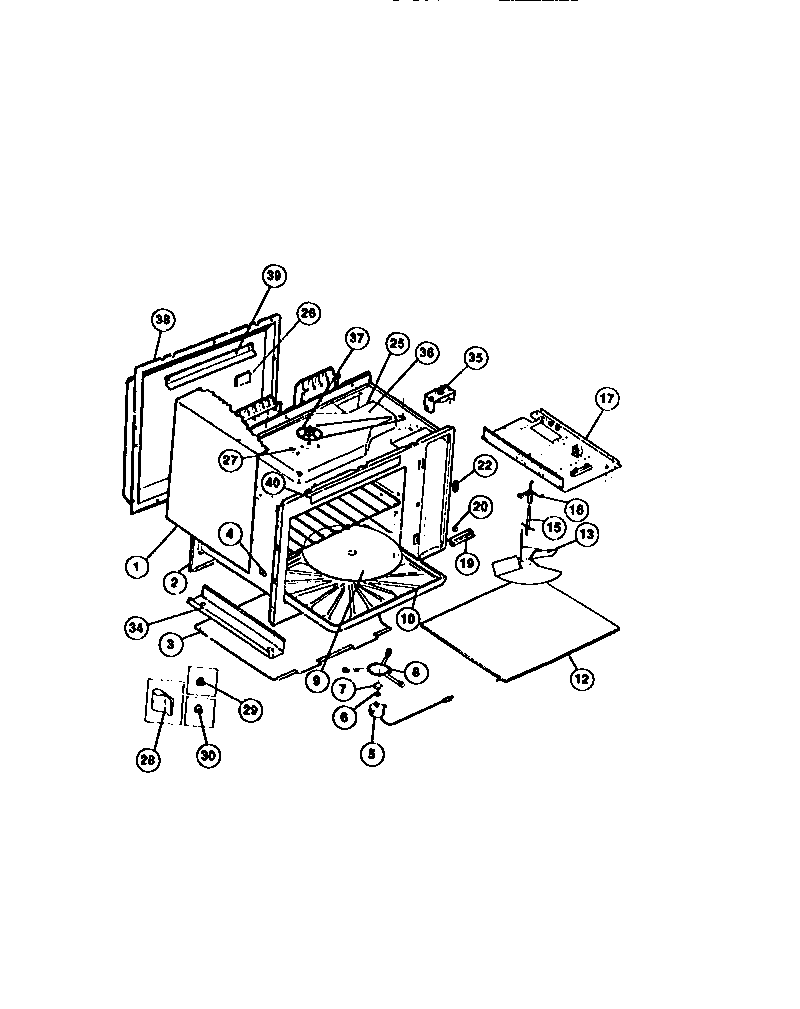

REM77BL4 08 – UPPER OVEN LINER, PANELS

Products

PositionProduct
*01289RIVET-COVER (8)
1WRAPPER-TOP & SIDES
3SHIELD – BOTTOM
4WCI 5303012322
5WCI 5303212920
6WASHER, TURNTABLE MOTOR, PLACE BETWEEN, MTR & OVEN BTM
7BUSHING-MOTOR
8SUPPORT-ROLLERS
9TRAY-ROUND
10GLASS TRAY (NOT ORIGINAL EQUIPMENT. CUSTOMER PURCHASE ON
12COVER, STIRRER
13FAN-STIRRER
15WCI 5303202875
16WCI 5303011826
17WCI 5303210624
19BRACKET
20WCI 5308037644
22WCI 5303212767
25DUCT-AIR (FOAM)
26COVER LIGHT
27SPACER – WRAPPER
283203010 Frigidaire Clip
29PLUG-BUTTON
30PLUG-BUTTON TRAY (2)
34ASEAL-FOAM
34BWASHER-PULLEY
34WCI 5303011773
35WCI 5303206759
36WCI 5303011495
37WCI 5303013647
38WCI 5303203692
39ANGLE-AIR BAFFLE
39CPLUG-BUTTON (8)
39ASHIELD-OVEN LITE-MYLAR (NON-ILLUSTRATED)
39BPLUG-BUTTON
40LABEL-COOK GUIDE (NON-ILLUSTRATED)
