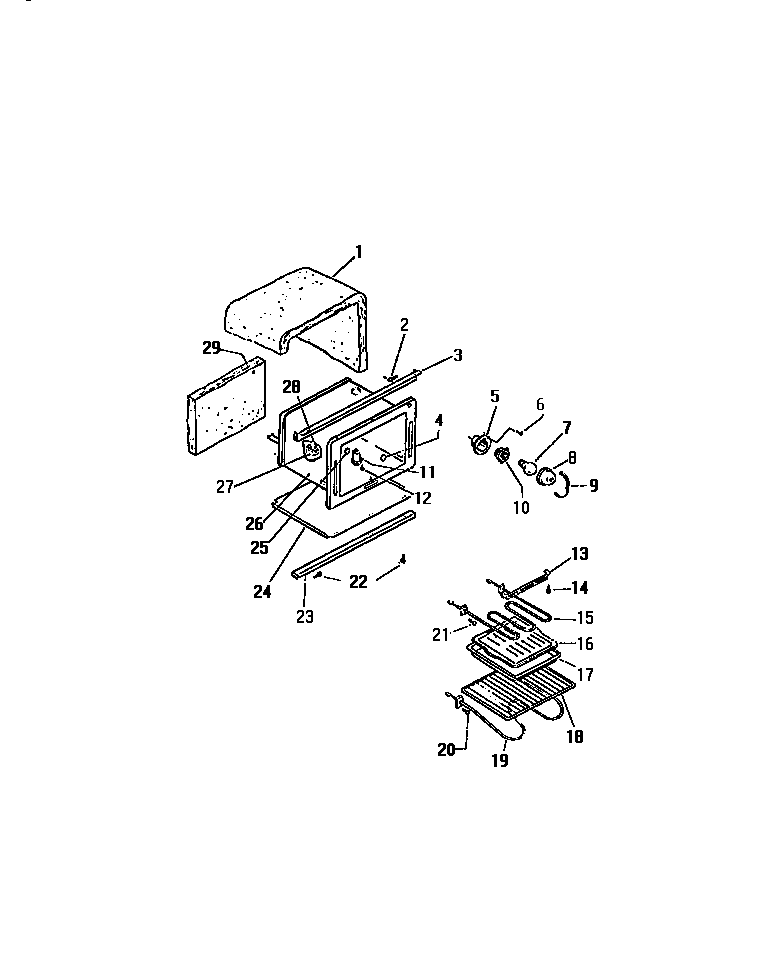

REP302CD1 05 – OVEN CAVITY

Products

Position	Product
1	WCI K1311331
3	WCI K1325636
4	PLUG-BUTTON 3/4“
5	CUP, OVEN LT
7	WCI K186186
8	5304524341 Frigidaire Lens
9	RETAINING WIRE
10	316116400 Frigidaire Oven Light Socket
11	WCI K5055002
12	SCREW
13	HANGER
15	5303051516 Frigidaire Broil Element
16	GRILLE, BROILER
17	5304442087 Frigidaire Range Wall Oven Broil Pan and Insert
18	RACK (2)
19	5303051519 Frigidaire Oven 2600W Bake Element
22	SCREW
23	CHANNEL, OV. SUPT.
24	WCI K5276502
25	WCI KGM142017
26	WCI K1325538
27	BRACKET THERM. BULB
28	08002868 Frigidaire 0 Screw Assembly
29	INSULATION-OVEN BACK
