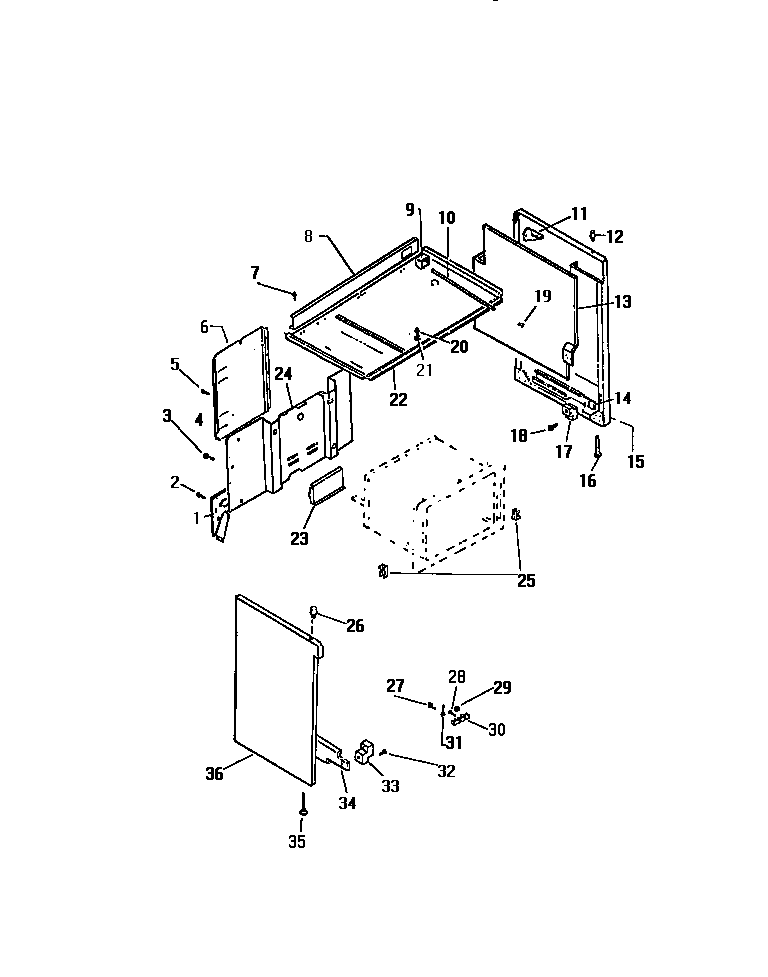

REP302CT1 06 – PANELS

Products

Position	Product
*62684	WCI K5011207
*62683	WCI K5133501
1A	GUSSET, RH
1	GUSSET REAR, LH
4	WCI K1099962
6	COVER, WIRE
8	WCI K5287902
9	SWITCH-DOOR
10	PUSH ROD
11	GUSSET, BACKGRD (2)
13	RETAINER-INSUL (2)
14	RAIL, DWR., RH
15	WCI K5024609
19	WCI K1322682
21	WASHER, PADDED
22	WCI K5025802
23	WCI G5134501
24	BACK
25	SPACER, RAIL
26	BUMPER
27	08002868 Frigidaire 0 Screw Assembly
28	SCREW
29	WCI K1266
30	5304409888 Frigidaire Oven Terminal Block with Hardware
31	STRAP-GROUND
32	SCREW
33	GUIDE
34	RAIL, DWR, LH
35	LEG
36	PANEL-END RH-WHEAT
