REP302CV1 07 – LATCH ASSEMBLY

REP302CV1 07 – LATCH ASSEMBLY

Written by

in

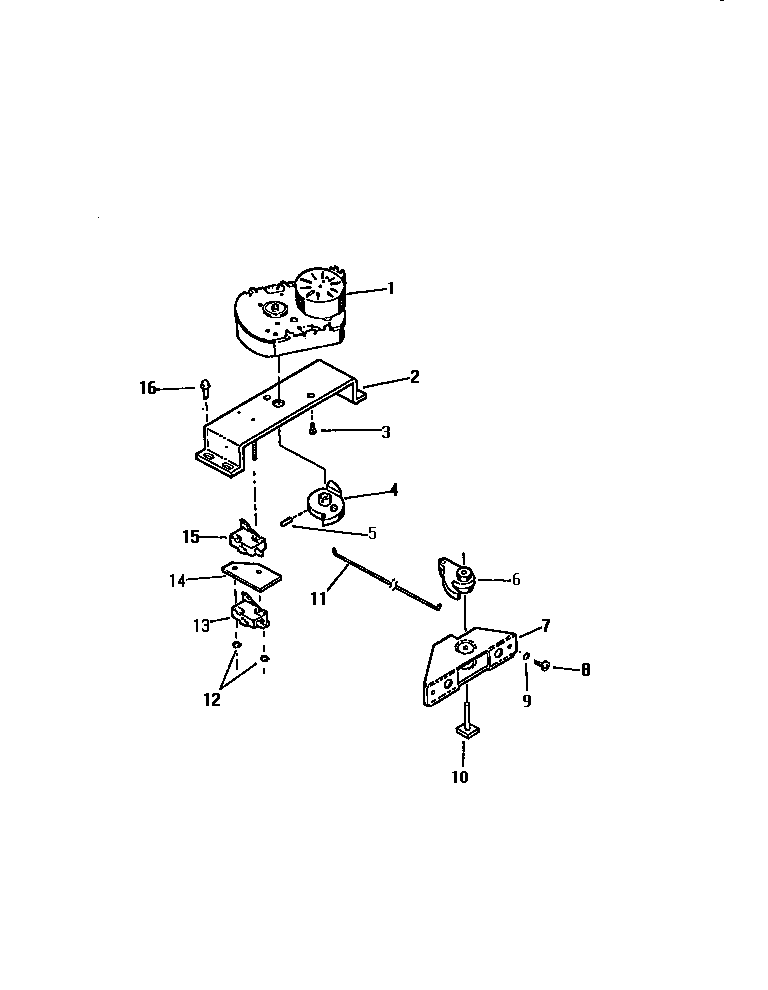

REP302CV1 07 – LATCH ASSEMBLY

Products

PositionProduct
1LATCH-MOTOR
2WCI K5151613
4WCI K5151605
5WCI K5151606
6WCI K5260202
7HOUSING, DOOR LATCH
8WCI K1164550
9WASHER, PADDED
10AXLE
11WCI K5271201
125303013272 Frigidaire Oven Nut
13WCI K5151608
14WCI K5151607
15WCI K5151609
1608002868 Frigidaire 0 Screw Assembly
