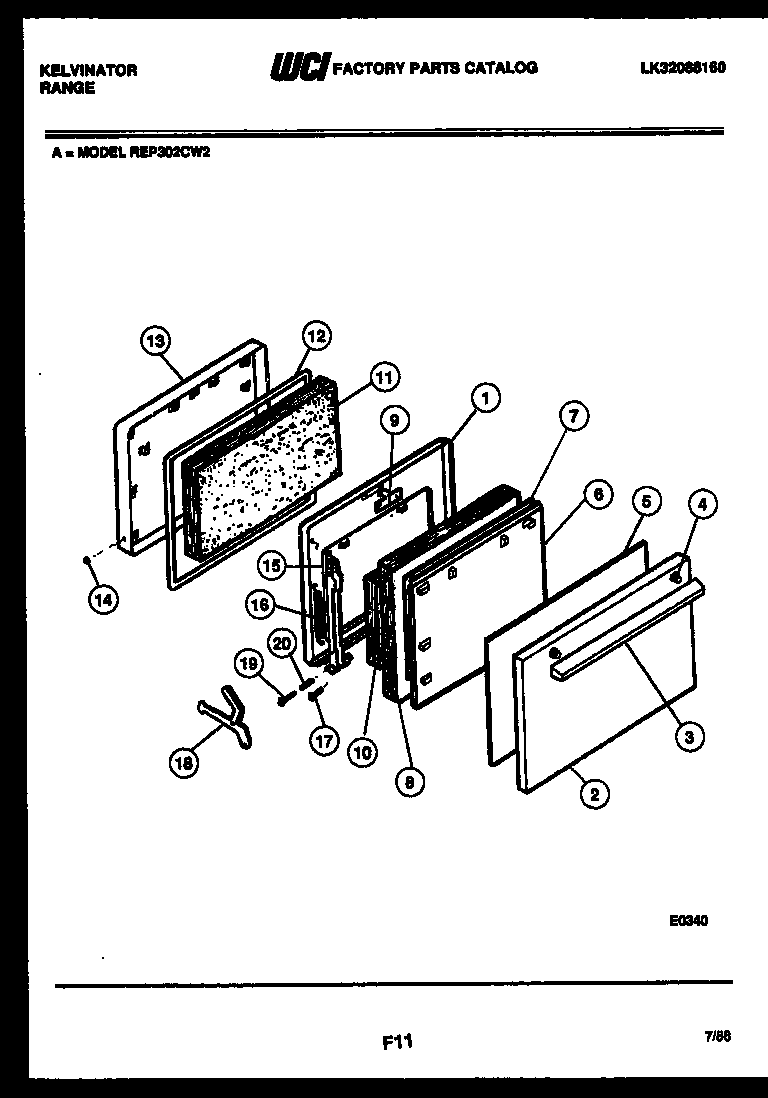

REP302CV2 05 – DOOR PARTS

Products

Position	Product
1	DOOR LINER
2	WCI K1317743
3	HANDLE - DRAWER (CHROME)
4	SPACER (2)
5	PANEL-INSULATOR PAD
6	WCI K5276901
7	WCI K1313020
8	WCI K1322652
9	STRIKE ASSEMBLY
10	WCI K1322651
11	WCI K1322622
12	GASKET
13	BAFFLE
14	WCI KGM142001
15	CHANNEL ASSY (COMPLETE W/ROLLER & STUD)
16	WCI K1302501
17	RIVET
18	ARM ASSY.
19	AXLE
20	WCI K1309794
