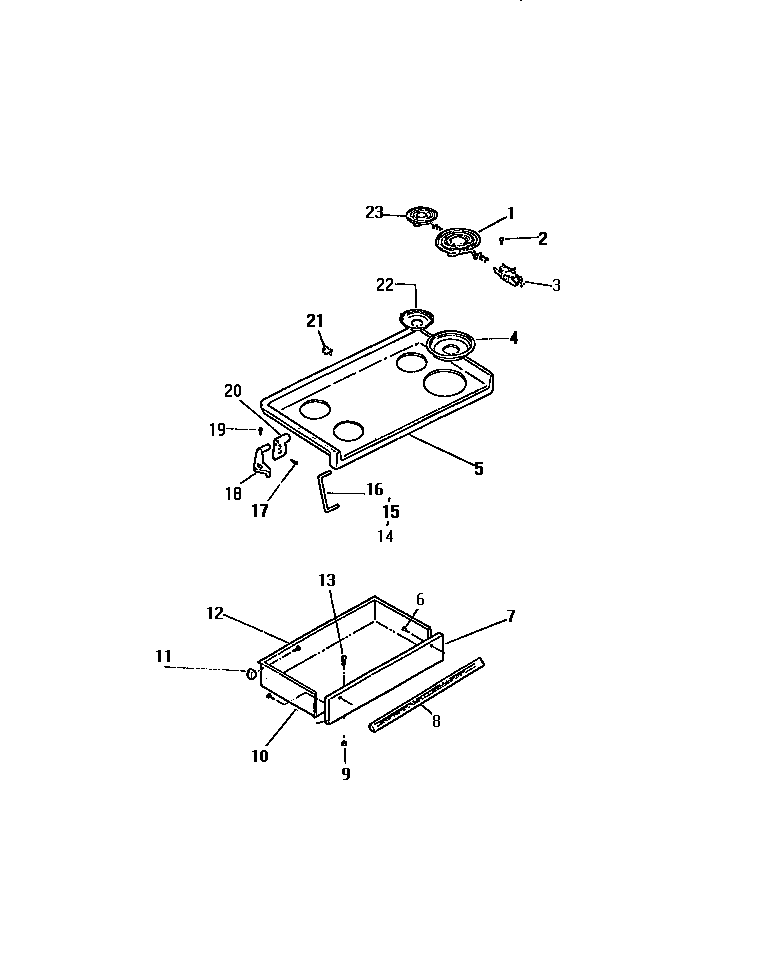

REP302CW1 03 – TOP/DRAWER

REP302CW1 03 – TOP/DRAWER

Written by

in

REP302CW1 03 – TOP/DRAWER

Products

PositionProduct
15308011964 Frigidaire Surface Element P1
25308014215 Frigidaire Oven Screw
35303935058 Frigidaire Oven Burner Receptacle Kit
4316048413 Frigidaire Oven Range Chrome 8" Drip Bow
5WCI K5270101
7WCI K1325096
8HANDLE, DRAWER
95303013272 Frigidaire Oven Nut
10DRAWER
11GUIDE
13SCREW
14WCI K1164550
15RETAINER
16ROD
18AWCI K1315631
18WCI K1315630
1908002868 Frigidaire 0 Screw Assembly
20WCI K1315632
21WCI K1315541
22316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
23318372210 Frigidaire Oven Range 6" 1250W Surface Element
