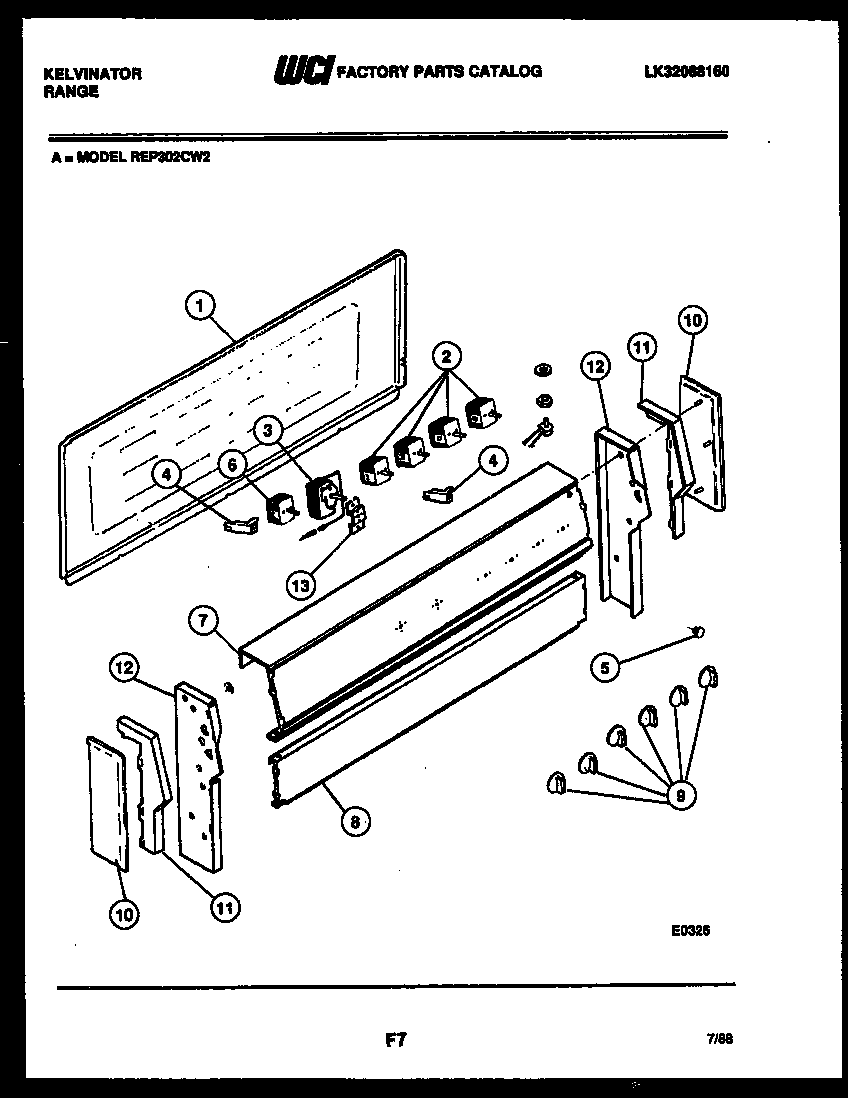

REP302CW2 02 – CONSOLE AND CONTROL PARTS

REP302CW2 02 – CONSOLE AND CONTROL PARTS

Written by

in

REP302CW2 02 – CONSOLE AND CONTROL PARTS

Products

PositionProduct
1COVER-WIRE, UPPER
2SWITCH-SURFACE UNIT (4)
3WCI K1324562
4SIGNAL LIGHT-SURF UNIT
4SIGNAL LIGHT, OVEN
5WCI K5139002
6WCI K5275701
7WCI K5269501
8PANEL BACKSPLASH, ALMOND
8WCI K5137604
8PANEL BACKSPLASH, COFFEE
8PANEL BACKSPLASH, WHITE
8PANEL BACKSPLASH, WHEAT
9KNOB OVEN SELECTOR
10WCI K5128002
10AWCI K5128001
11WCI K5128102
11AWCI K5128101
12ASUPPORT-BACKGRD RH
12WCI K5127702
13WCI K5276103
