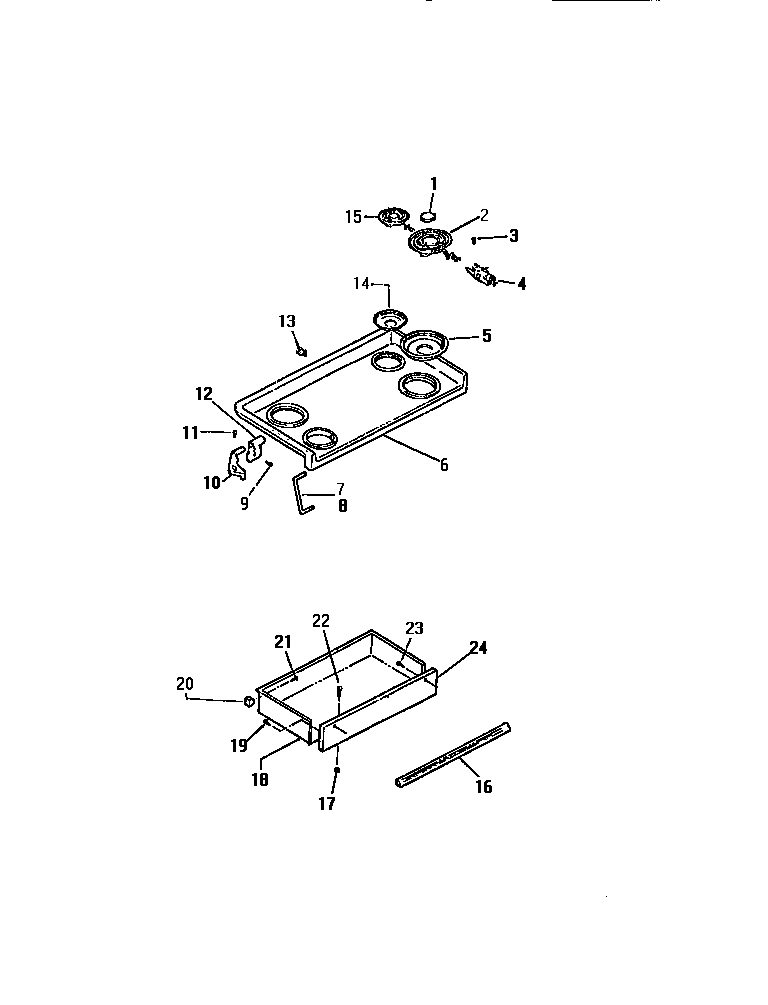

REP305CD0 03 – TOP/DRAWER

REP305CD0 03 – TOP/DRAWER

Written by

in

REP305CD0 03 – TOP/DRAWER

Products

PositionProduct
1WCI K1167679
2316442301 Frigidaire Oven 8 Coil Element 2600W
35308014215 Frigidaire Oven Screw
45303935058 Frigidaire Oven Burner Receptacle Kit
5316048413 Frigidaire Oven Range Chrome 8" Drip Bow
6WCI K5270112
7ROD
8WCI K1310048
10AWCI K1315631
10WCI K1315630
1108002868 Frigidaire 0 Screw Assembly
12WCI K1315632
13WCI K1315541
14316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
15318372211 Frigidaire Oven 6" Electric Range Burner Kit
16HANDLE – DRAWER (CHROME)
175303013272 Frigidaire Oven Nut
18DRAWER
20GUIDE
23SCREW
24PANEL DRAWER, ALMOND
