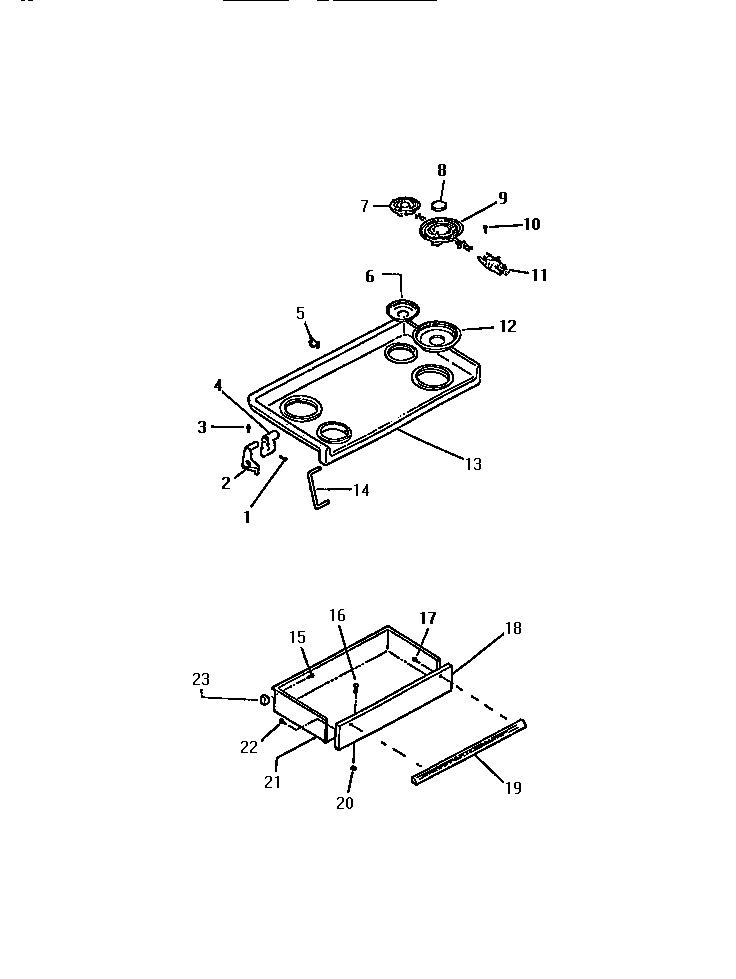

REP305CD1 03 – TOP/DRAWER

REP305CD1 03 – TOP/DRAWER

Written by

in

REP305CD1 03 – TOP/DRAWER

Products

PositionProduct
2AWCI K1315631
2WCI K1315630
308002868 Frigidaire 0 Screw Assembly
4WCI K1315632
5WCI K1315541
6316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
7318372211 Frigidaire Oven 6" Electric Range Burner Kit
8WCI K1167679
9316442301 Frigidaire Oven 8 Coil Element 2600W
105308014215 Frigidaire Oven Screw
115303935058 Frigidaire Oven Burner Receptacle Kit
12316048413 Frigidaire Oven Range Chrome 8" Drip Bow
13AWCI K5270112
14BWCI K1164550
14ARETAINER
14ROD
18APANEL DRAWER, ALMOND
19HANDLE – DRAWER (CHROME)
205303013272 Frigidaire Oven Nut
21DRAWER
22SCREW
23GUIDE
