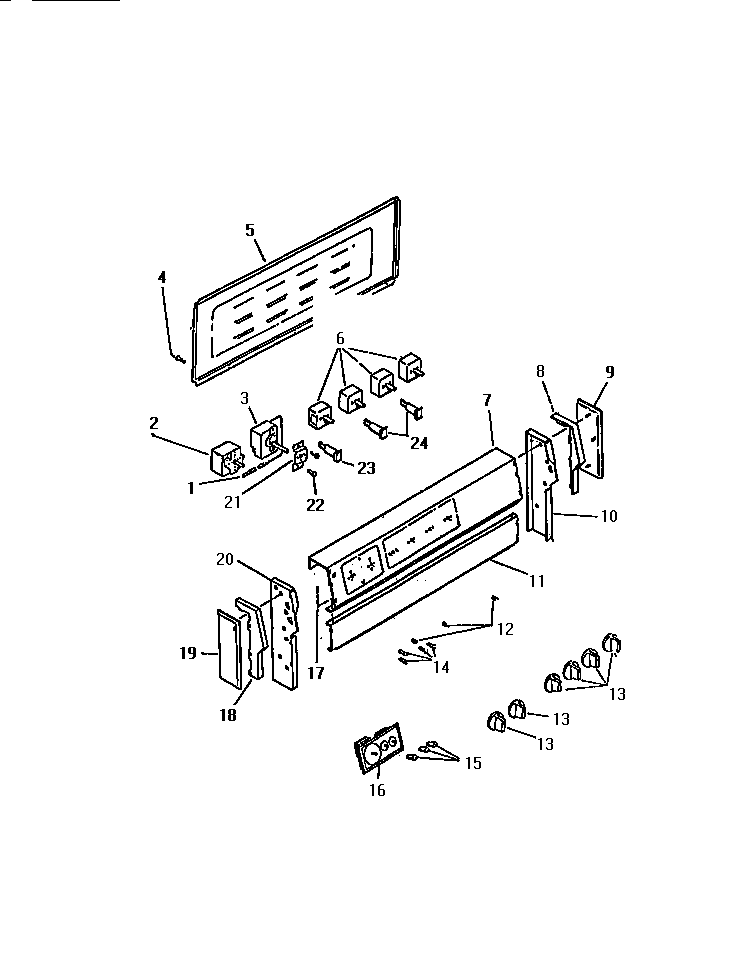

REP305CF1 02 – BACKGUARD

Products

Position	Product
*20841	NUT (3)
1	WCI K1301788
2	SWITCH-OVEN SELECT
3	WCI K1324562
5	COVER, WIRE
6B	SWITCH-SURFACE UNIT (4)
6	5303935086 Frigidaire Oven Top Burner Switch Kit
7	WCI K5266701
8	WCI G5128105
9	WCI G5128001
10	WCI G5127701
11D	PANEL BACKSPLASH, COFFEE
12	WCI K5139002
13	KNOB OVEN SELECTOR
15	WCI K1167946
15A	WCI G1167984
16	WCI K5260501
16A	BRACKET MOUNTING
16B	SCREW
17	08002868 Frigidaire 0 Screw Assembly
18	WCI K5128106
19	WCI K5128002
20	WCI K5127702
21	WCI K5267103
22	SCREW – THERMO BRACKET 6-32 X 3/16 (2)
23	SIGNAL LIGHT, OVEN
24	SIGNAL LIGHT-SURF UNIT
