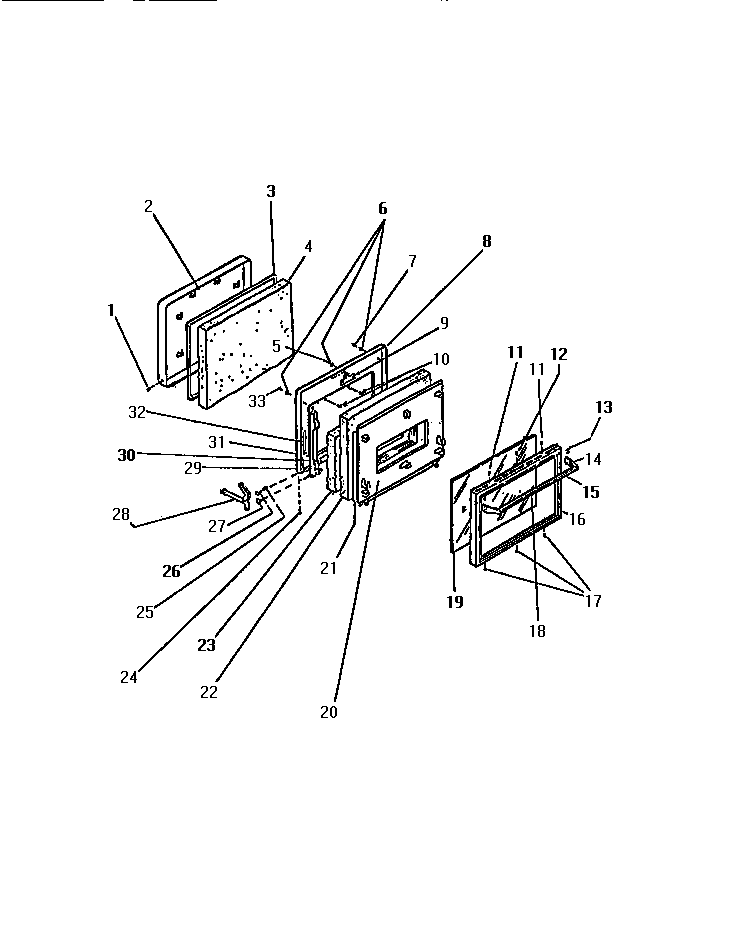

REP305CF1 04 – DOOR

Products

Position	Product
1	WCI KGM142001
2	WCI K1323840
3	GASKET
4	WCI K1322622
6	WASHER, PADDED
8	WCI K1324720
9	STRIKE ASSEMBLY
12	WCI K1164566
13	SCREW
14	STANCHION-HANDLE (2)
15	WCI K5026807
16	FRAME – CHROME OVEN DOOR
18	HANDLE ASSY (INCLUDES STANCHION)
19	GLASS
20	WCI K5276901
21	WCI K1313020
22	WCI K1322652
23	WCI K1322651
24	WCI K1164550
25	WCI K1309794
26	RIVET
27	AXLE
28	ARM ASSY.
29	WCI K1311648
30	WCI K1164387
31	CHANNEL ASSY (COMPLETE W/ROLLER & STUD)
32	WCI K1302501
33	08002868 Frigidaire 0 Screw Assembly
