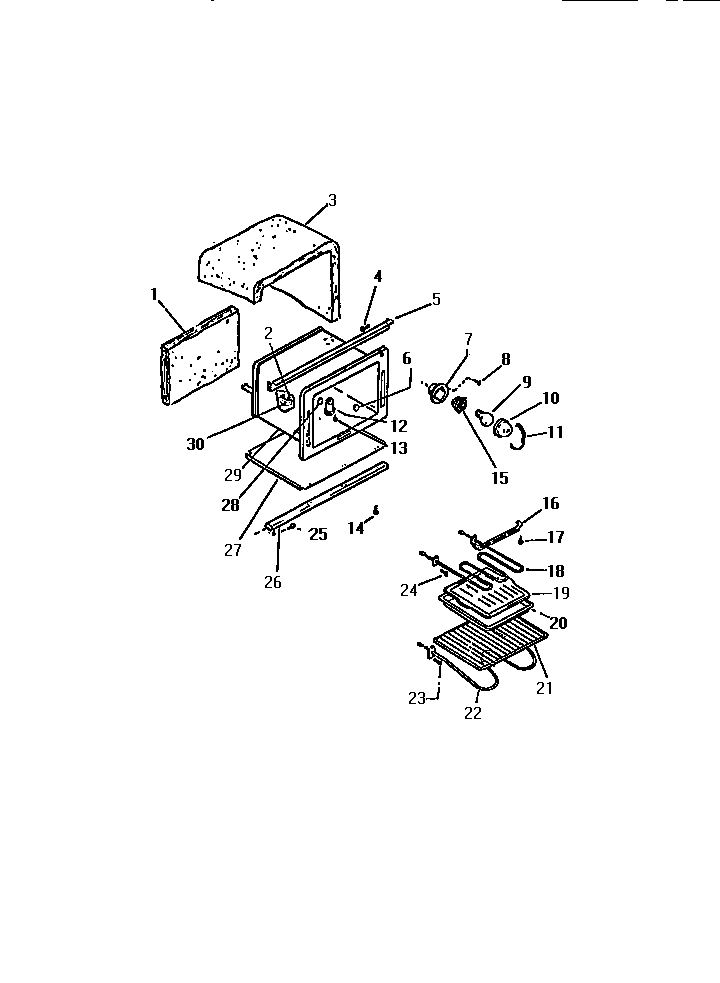

REP305CF1 05 – OVEN CAVITY

Products

Position	Product
1	INSULATION-OVEN BACK
3	WCI K1311331
5	WCI K1325636
6	PLUG-BUTTON 3/4``
7	CUP, OVEN LT
9	316538904 Frigidaire Oven Lamp Light
10	5304524341 Frigidaire Lens
11	RETAINING WIRE
12	VENT TUBE
13	SCREW
15	316116400 Frigidaire Oven Light Socket
16	HANGER
17	WCI K116447
18	5303051516 Frigidaire Broil Element
19	GRILLE, BROILER
20	5304442087 Frigidaire Range Wall Oven Broil Pan and Insert
21	RACK (2)
21A	WCI K5133501
22	5303051519 Frigidaire Oven 2600W Bake Element
24	08002868 Frigidaire 0 Screw Assembly
25	SCREW
26	CHANNEL, OV. SUPT.
27	WCI K1317644
28	WCI KGM142017
29	WCI K1325538
30	BRACKET THERM. BULB
