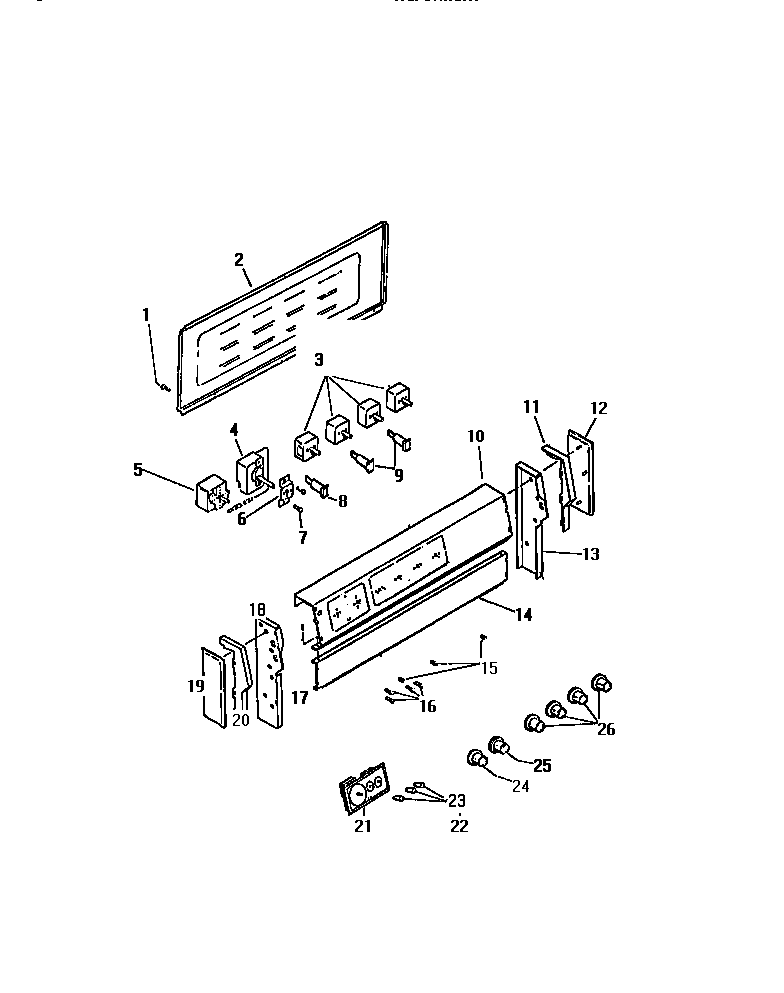

REP305CT0 02 – BACKGUARD

Products

PositionProduct
2COVER, WIRE
3AWCI K1311749
3BSWITCH-SURFACE UNIT (4)
3WCI K1311748
4WCI K1324562
5SWITCH-OVEN SELECT
6WCI K5267103
8SIGNAL LIGHT, OVEN
9SIGNAL LIGHT-SURF UNIT
10WCI K5266701
11WCI G5128105
12WCI G5128001
13WCI G5127701
14PANEL BACKSPLASH, WHEAT
15WCI K5139002
16SCREW – THERMO BRACKET 6-32 X 3/16 (2)
1708002868 Frigidaire 0 Screw Assembly
18WCI K5127702
19WCI K5128002
20WCI K5123106
21ABRACKET MOUNTING
21WCI K5260501
21BSCREW
22WCI G1167984
23WCI K1167946
26KNOB OVEN SELECTOR
