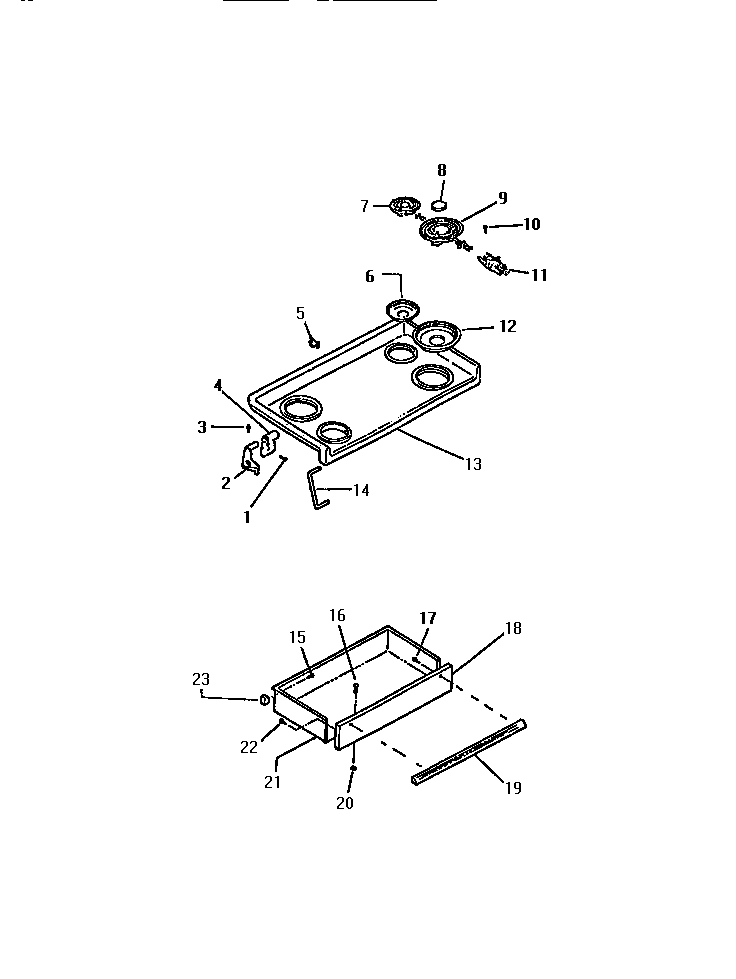

REP305CV1 03 – TOP/DRAWER

REP305CV1 03 – TOP/DRAWER

Written by

in

REP305CV1 03 – TOP/DRAWER

Products

PositionProduct
2AWCI K1315631
2WCI K1315630
308002868 Frigidaire 0 Screw Assembly
4WCI K1315632
5WCI K1315541
6316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
7318372211 Frigidaire Oven 6" Electric Range Burner Kit
8WCI K1167679
9316442301 Frigidaire Oven 8 Coil Element 2600W
105308014215 Frigidaire Oven Screw
115303935058 Frigidaire Oven Burner Receptacle Kit
12316048413 Frigidaire Oven Range Chrome 8" Drip Bow
13CWCI K5270110
14BWCI K1164550
14ROD
14ARETAINER
18CWCI K1325098
19HANDLE – DRAWER (CHROME)
205303013272 Frigidaire Oven Nut
21DRAWER
22SCREW
23GUIDE
