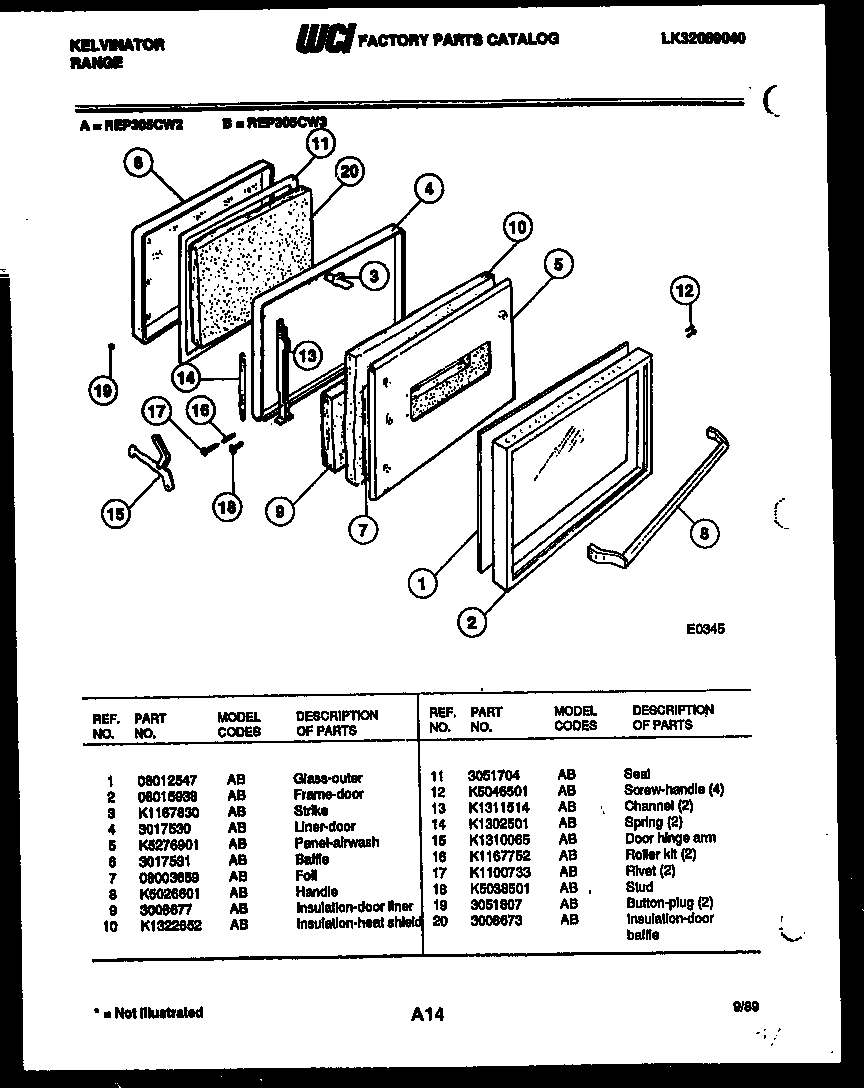

REP305CV2 03 – DOOR PARTS

Products

Position	Product
1	WCI 08012547
2	FRAME - DOOR
3	WCI K1167830
4	DOOR LINER
5	WCI K5276901
6	BAFFLE
7	WCI 08003659
8	HANDLE ASSY (INCLUDES STANCHION)
9	WCI 3008677
10	WCI K1322652
11	SEAL
12	SCREW
13	CHANNEL ASSY (COMPLETE W/ROLLER & STUD)
15	ARM ASSY.
16	ROLLER PACKAGE-OVEN DOOR (2)
17	WCI K1100733
18	AXLE
19	BUTTON PLUG
20	WCI 3008673
