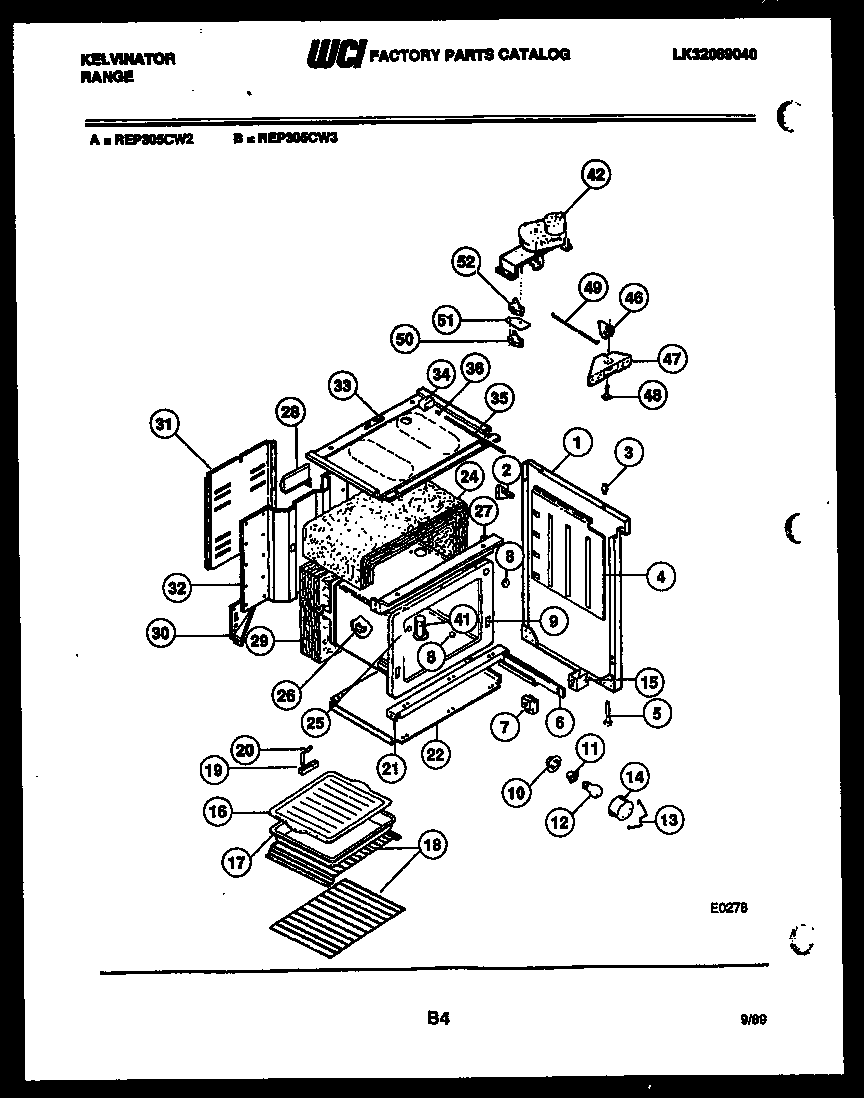

REP305CW3 07 – BODY PARTS

Products

Position	Product
1	WCI K5024601
1A	WCI 08012528
2	GUSSET, BACKGRD (2)
3	BUMPER
4	RETAINER, INSULATION (2)
5	LEG, LEVELLER (4)
6	WCI 08015746
6A	RAIL, DRAWER LH
7	GUIDE
8	WCI 3051784
9	OVEN LINER
10	CUP, OVEN LT
11	316116400 Frigidaire Oven Light Socket
12	316538904 Frigidaire Oven Lamp Light
13	RETAINING WIRE
14	5304524341 Frigidaire Lens
15	SPACER, RAIL
16	WCI 3205234
17	WCI 3205232
18	RACK-OFFSET
18	316067902 Frigidaire Oven Rack
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	STRAP-GROUND
21	CHANNEL - OVEN SUPPORT LOWER
22	WCI 3203574
24	WCI K1311331
25	PLUG BUTTON - THERMO BULB HOLE
26	BRACKET THERM. BULB
27	WCI K1325636
28	WCI K5134501
29	INSULATION-OVEN BACK
30	WCI 3017481
30A	WCI 3017482
31	GASKET
32	WCI 3017535
33	WCI 08012542
33A	WASHER, PADDED
34	SWITCH - DOOR
35	WCI K1322683
36	WCI 08007444
41	TUBE-OVEN VENT
42	MOTOR-LATCH
46	LATCH-DOOR
47	HOUSING-DOOR LATCH
48	AXLE
49	WCI K5271201
50	SWITCH-LOWER
51	INSULATOR
52	WCI K1167190
