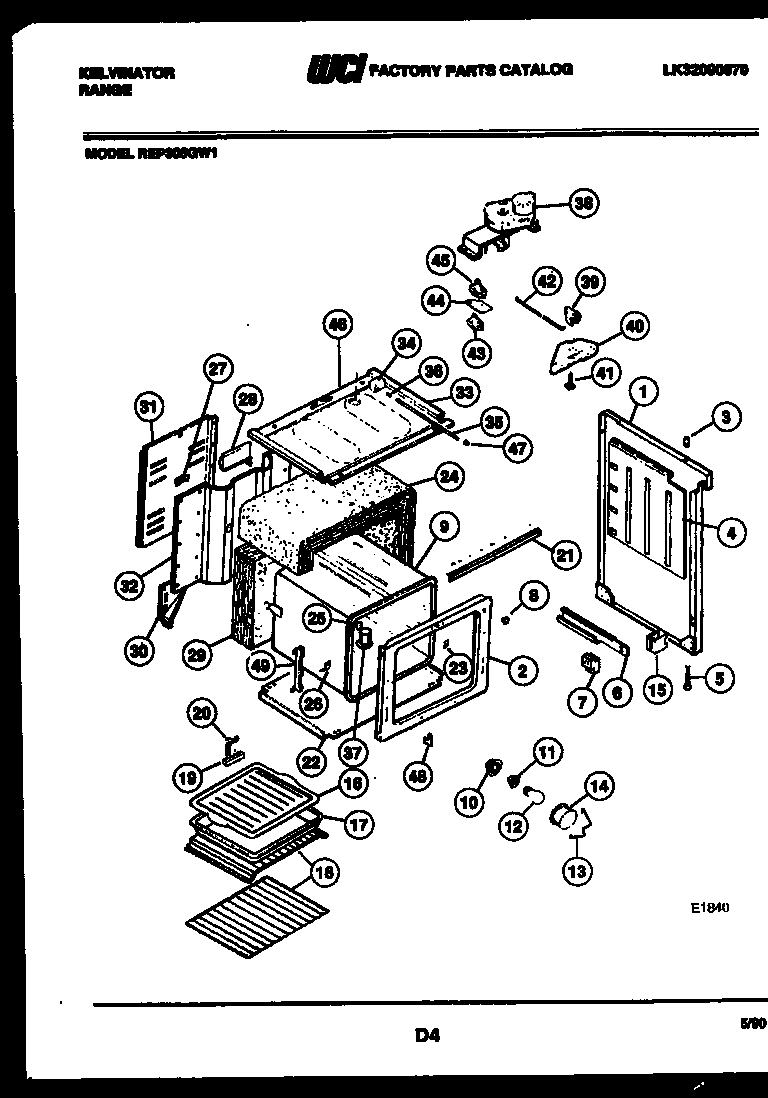

REP305GT1 06 – BODY PARTS

REP305GT1 06 – BODY PARTS

Written by

in

REP305GT1 06 – BODY PARTS

Products

PositionProduct
*16933WCI 5300009126
*16933ANTI-TIP KIT, (NON-ILLUSTRATED)
1WCI 08012536
1SIDE PANEL-RH WHEAT
1DRAWER
2WCI 5308011059
3WCI 5308014202
4GUIDE – DRAWER REAR (2)
22WCI 3206275
23WCI 3202082
25PLUG BUTTON (NON-ILLUSTRATED)
26WCI 3201632
27WCI 3016281
28WCI 3051634
29INSULATION
30WCI 3017481
30WCI 3017482
31WIRE, COVER
32PANEL-BACK
33WCI 08012542
34SWITCH, DOOR
35WCI 08007445
36WCI 08007444
37TUBE-OVEN VENT
38LATCH, MOTOR
39WCI 3202387
40HOUSING-DOOR LATCH
41AXLE – HINGE (2)
42WCI 3051649
43SWITCH, LOWER
44WCI 08003090
45SWITCH-LOWER
46WCI 3205755
47WCI 08067758
48WCI 3019063
49WCI 3201631
